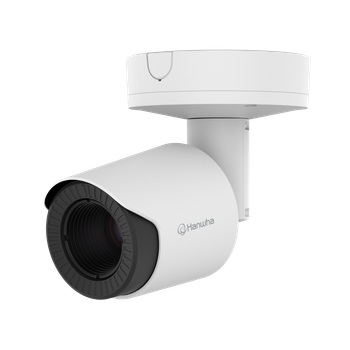

Hanwha Vision TNO-C3080T QVGA AI Thermal Bullet Camera

Brand: Hanwha Vision America
SKU:
TNO-C3080T
Condition:
New
(No reviews yet) Write a Review
MSRP: $9,400.00
Price: $6,110.00
— You save $3,290.00

Description

Hanwha Vision TNO-C3080T – QVGA AI Thermal Bullet

The Hanwha Vision TNO-C3080T is a QVGA AI Thermal Bullet built for perimeters, fence lines and total darkness. Wisenet T network thermal compact bullet camera, 384 x 288 (uncooled); ＜20mK (NETD), Max 768 x 576 @ 30fps resolution support, 60mm fixed focal lens (HFoV: 6.2o), Triple codec H.265/H.264/MJPEG with WiseStream III (based on AI engine) support, Analytics events based on AI engine: Object detection (Person/Vehicle), Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Analytics events: Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), PTZ handover, built-in SD card slot (1x1TB), integrated back box, IP66, NEMA4X, IK10, PoE/12VDC, white color.

Key Specifications

Max video resolution 768x576 (QVGA)
Max frames per second 30fps
Thermal detector Uncooled micro bolometer (384x288)
Thermal sensitivity (NETD) ≤20mK@25°C, F1.0
Focal length / lens 60 mm
Horizontal field of view 6.2°
Onboard AI (object classes) Person, Vehicle
Power PoE(IEEE802.3af, Class3), 12VDC · Max. 10.8W, typical 9W
IP / vandal rating IP66, IP67, NEMA 4X, IK10
Operating temperature -40°C~+60°C(-40°F~+140°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision TNO-C3080T?

  • QVGA 768x576 video at up to 30fps
  • 60 mm lens and a 6.2° horizontal view
  • Uncooled micro bolometer (384x288) thermal detector, NETD ≤20mK@25°C, F1.0
  • AI object classification: Person, Vehicle
  • Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+)
  • IP66, IP67, NEMA 4X, IK10 rated housing
  • Power: PoE(IEEE802.3af, Class3), 12VDC

Thermal Detection Day and Night

The TNO-C3080T uses Uncooled micro bolometer (384x288) with NETD ≤20mK@25°C, F1.0, so it detects people and vehicles by heat signature in total darkness, smoke and light fog.

Coverage and Resolution

A 60 mm lens covers a 6.2° horizontal field of view; resolution is up to 768x576 at 30fps.

AI Analytics on the Edge

The onboard AI engine classifies Person, Vehicle; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE(IEEE802.3af, Class3), 12VDC (Max. 10.8W, typical 9W); operating temperature: -40°C~+60°C(-40°F~+140°F); ratings: IP66, IP67, NEMA 4X, IK10; edge storage: Max. 1TB x 1slot; compression: H.265/H.264: Main/Baseline/High, MJPEG.

Typical Applications

  • Perimeters and fence lines
  • Critical infrastructure
  • Total-darkness areas
  • Waterfronts and ports

Compatible Accessories

Compatible accessories for the Hanwha Vision TNO-C3080T. Linked items are available at Affinitech Store; contact us for the others:

Compare Hanwha Vision TNO-C Series Cameras

ModelMax resolutionTypeBest for
Hanwha Vision TNO-C3080T (this camera) 768x576 QVGA AI Thermal Bullet Perimeters, fence lines and total darkness
Hanwha Vision TNO-C3022TRA - QVGA Radiometric Bullet Camera Perimeters, fence lines and total darkness

Explore More

Frequently Asked Questions About Hanwha Vision TNO-C3080T

What resolution does the Hanwha Vision TNO-C3080T capture?

Up to 768x576 (QVGA) at 30fps.

What lens does it use?

60 mm; horizontal field of view 6.2°.

What thermal detector does it use?

Uncooled micro bolometer (384x288), NETD ≤20mK@25°C, F1.0.

Can it be installed outdoors?

Yes. It is rated IP66, IP67, NEMA 4X, IK10 and operates from -40°C~+60°C(-40°F~+140°F).

What can the AI analytics detect?

It classifies Person, Vehicle; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection.

How is it powered?

PoE(IEEE802.3af, Class3), 12VDC (Max. 10.8W, typical 9W).

What video compression does it support?

H.265/H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 1TB x 1slot.

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision TNO-C3080T Specifications

SpecificationDetails
Video
Imaging Device - TypeUncooled micro bolometer (384x288)
Resolution768x576, 384x288
Max. Framerate - H.265/H.26430fps
Max. Framerate - MJPEG30fps
Spectral Range8~14㎛
NETD≤20mK@25°C, F1.0
Pixel Size17㎛
Video OutUSB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
Lens
Focal Length (mm)60
Max Aperture Ratio (F number) - Wide1.2
Angular Field of View - Horizontal6.2°
Angular Field of View - Vertical4.7°
Angular Field of View - Diagonal7.7°
iFoV0.283 mRad
Min. Object Distance88.3m(289.7ft)
Focus ControlFixed
Lens TypeAthermalized
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~350°
Pan / Tilt / Rotate Range - Tilt0°~90°
Pan / Tilt / Rotate Range - Rotate0°~350°
Operational
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity6ea
Privacy Masking - ShapeRectangular zones
Privacy Masking - Color / OptionGray, Black, White
Video RotationFlip, Mirror, Hallway view(90°/270°)
Serial InterfaceRS-485
Alarm Interface - In/Out2 configurable I/O ports
Alarm Interface - OthersSupport extra alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Color PallettesWhitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Analytics
Classified Object TypePerson, Vehicle
ThumbnailBestShot
Analytics Events - Based on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Analytics Events - NormalMotion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Radiometry
Hybrid PallettesSupport
ROI Condition MonitoringNone, Increase, Decrease
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart CodecManual, WiseStreamⅡ, WiseStreamⅢ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - UnicastUp to 20 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface - ONVIFS, G, T, M
Application Programming Interface - OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+)
General
Memory - RAM2GB
Memory - Flash512MB
Edge Storage - Micro SD/SDHC/SDXCMax. 1TB x 1slot
Environmental & Electrical
Operating Condition - Temperature-40°C~+60°C(-40°F~+140°F)
Operating Condition - Humidity0~95% RH(non-condensing)
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power Consumption - PoEMax. 10.8W, typical 9W
Power Consumption - 12VDCMax. 9.4W, typical 7.7W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø107.3x275mm(ø4.22x10.83")
Product Weight2340g(5.16 lb)
Compatible Conduit HoleSupport conduit compatibility via optional adaptor
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 514.8, MIL-STD-810H 516.8
DRI (Johnson's Criteria)
Detection - Person(1.67PPM)2,127m(6,979ft)
Detection - Vehicle(0.65PPM)5,436m(17,834ft)
Recognition - Person(6.67PPM)532m(1,745ft)
Recognition - Vehicle(2.61PPM)1,359m(4,459ft)
Identification - Person(13.33PPM)266m(872ft)
Identification - Vehicle(5.22PPM)679m(2,229ft)
