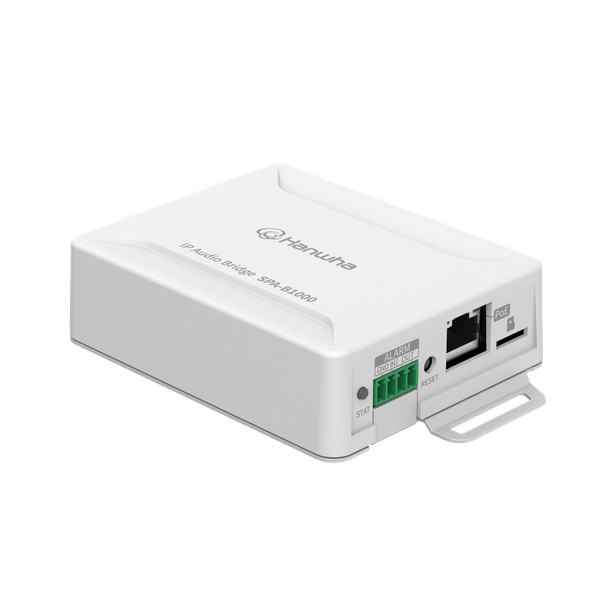

Hanwha Vision SPA-B1000 IP Audio Bridge
Description
Hanwha Vision SPA-B1000 – IP Audio Bridge
The Hanwha Vision SPA-B1000 is a IP Audio Bridge. Highlights are listed below, and the full specifications are in the Detailed Specifications tab.
Key Specifications
| Supported Protocols | IPv4, HTTP, HTTPS, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
| PoE | PoE (IEEE 802.3 af type 1 Class 3), Max.10W, DC24V |
| Power | N/A |
| Weight | 0.24Kg (0.53lb) |
| Operating Temperature | -20°~+50°C(-4°F~+122°F) |
| Application Programming Interface | SUNAPI(HTTP API) |
Full specifications are listed in the Detailed Specifications tab.
Highlights
- IP Audio Bridge
- Background Music
- Analog Audio Input (L, R : +6dBV Max line IN level)
- 1GB Internal Storage
- Single Micro SD slot (Up to 32GB)
- Built in Relay
- SUNAPI
- PoE
Explore More
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision SPA-B1000
What is the Hanwha Vision SPA-B1000?
IP Audio Bridge. IP Audio Bridge, Background Music, Analog Audio Input (L, R : +6dBV Max line IN level), 1GB Internal Storage, Single Micro SD slot (Up to 32GB), Built in Relay, SUNAPI, PoE
Where can I find the full specifications?
The full manufacturer specifications are listed in the Detailed Specifications tab.
Detailed Specifications
Hanwha Vision SPA-B1000 Specifications
| Specification | Details |
|---|---|
| Product | |
| IP Audio Type | IP Audio Module |
| Line Input | |
| Maximum Input Level | L, R : +6 dBV Max |
| Amplifier | |
| Description | Built in 10W Class D |
| Network | |
| Ethernet | 10/100 Base-T |
| Memory | |
| Internal Memory | 1 GBytes |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
| Contact | |
| Contact Input. Dry contact | One Channel |
| Contact Output. Dry contact (NO) | One channel |
| General | |
| Operating Temperature | -20°~+50°C(-4°F~+122°F) |
| Operating Humidity | 10~95%RH(Non-Condensing) |
| IP Code | N/A |
| Weight | 0.24Kg (0.53lb) |
| Size | 123(W)*80(H)*30.6(W)mm |
| Color | White |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : UL 62368-1, CAN/CSA 62368-1 |
| Power | |
| PoE | PoE (IEEE 802.3 af type 1 Class 3), Max.10W, DC24V |
| Power | N/A |
| Network Protocol | |
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) |
| Supported Protocols | IPv4, HTTP, HTTPS, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
| System Integration | |
| Application Programming Interface | SUNAPI(HTTP API) |
| Event & Preset | Virtual Contact, Dry contact |
| Functional Monitoring | Connection verification, Built-in system logging |
