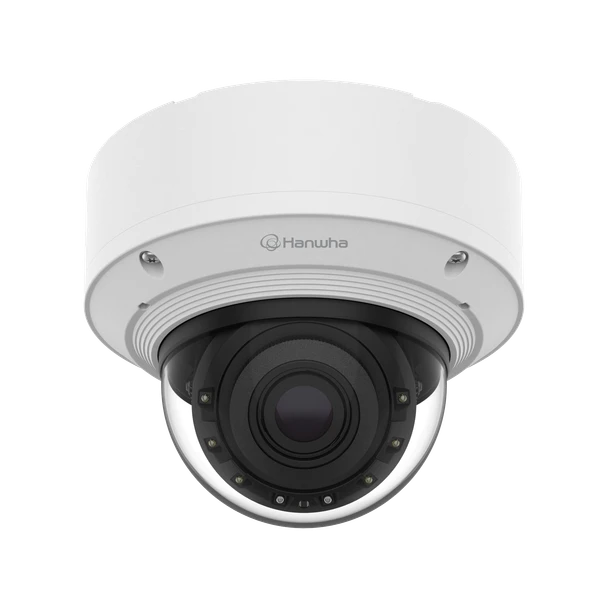

Hanwha Vision PND-A9082RV 8MP IR Indoor Vandal Dome AI Camera

Brand: Hanwha Vision America
SKU:
PND-A9082RV
Condition:
New
(No reviews yet) Write a Review
MSRP: $2,150.00
Price: $1,397.50
— You save $752.50

Description

Hanwha Vision PND-A9082RV – 8MP IR Indoor Vandal Dome AI Camera

The Hanwha Vision PND-A9082RV is an 8MP IR Indoor Vandal Dome AI camera built for hallways, stairwells and dark rooms. Powered by WN9, Network AI IR Indoor Dome Camera; 8MP Max Resolution 3840x2160 @ 30FPS; 0.03Lux@F1.5 (Color), 0Lux (B/W IR LED On).

Key Specifications

Max video resolution 3840x2160 (8MP)
Max frames per second 30fps/25fps(60Hz/50Hz)
Image sensor 1/1.2" CMOS
Focal length / lens 5.9~13.3 mm · 2.25x optical zoom
Horizontal field of view 109°~49°
Wide dynamic range 120 dB
Min illumination (color) 0.015 lux
Built-in IR WiseIR 60m(196.85ft)
Onboard AI (object classes) Person, Face, Vehicle, License plate
Power PoE+(IEEE802.3at, Class4), 12VDC · Max. 19.2W, typical 11.0W
IP / vandal rating IK10
Operating temperature -25°C~+50°C(-13°F~+122°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision PND-A9082RV?

  • 8MP 3840x2160 video at up to 30fps/25fps
  • 5.9~13.3 mm lens with 2.25x optical zoom and a 109°~49° horizontal view
  • 120 dB WDR for bright and backlit scenes
  • Built-in IR: WiseIR 60m(196.85ft)
  • AI object classification: Person, Face, Vehicle, License plate
  • Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
  • IK10 rated housing
  • Power: PoE+(IEEE802.3at, Class4), 12VDC

Clear Video Day and Night

The PND-A9082RV captures color video down to 0.015 lux; its built-in IR reaches WiseIR 60m(196.85ft); 120 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

A 5.9~13.3 mm lens with 2.25x optical zoom covers a 109°~49° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 5.5m(17.97ft); resolution is up to 3840x2160 at 30fps/25fps(60Hz/50Hz).

AI Analytics on the Edge

The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear); business intelligence features include People counting, Queue management, Heatmap, Vehicle counting, Crowd counting.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE+(IEEE802.3at, Class4), 12VDC (Max. 19.2W, typical 11.0W); operating temperature: -25°C~+50°C(-13°F~+122°F); ratings: IK10; edge storage: Max. 1TB x 2slot(Total 2TB); compression: H.265/H.264: Main/Baseline/High, MJPEG.

Typical Applications

  • Hallways
  • Stairwells
  • Dark rooms and back offices

Compatible Accessories

Compatible accessories for the Hanwha Vision PND-A9082RV. Linked items are available at Affinitech Store; contact us for the others:

Compare Hanwha Vision PND-A Series Cameras

ModelMax resolutionTypeBest for
Hanwha Vision PND-A9082RV (this camera) 3840x2160 8MP IR Indoor Vandal Dome AI Camera Hallways, stairwells and dark rooms
Hanwha Vision PND-A9081RVX 4K 4K IR Indoor AI Camera Module Only Hallways, stairwells and dark rooms
Hanwha Vision PND-A9081RV 4K 4K IR Indoor Vandal Dome AI Camera Hallways, stairwells and dark rooms
Hanwha Vision PND-A9081RF 4K 4K IR Indoor Flush Mount Dome AI Camera Hallways, stairwells and dark rooms

Explore More

Frequently Asked Questions About Hanwha Vision PND-A9082RV

What resolution does the Hanwha Vision PND-A9082RV capture?

Up to 3840x2160 (8MP) at 30fps/25fps(60Hz/50Hz).

What lens does it use?

5.9~13.3 mm with 2.25x optical zoom; horizontal field of view 109°~49°.

Does it see in the dark?

Yes. Built-in IR reaches WiseIR 60m(196.85ft).

What protection ratings does it have?

It is rated IK10 and operates from -25°C~+50°C(-13°F~+122°F).

What can the AI analytics detect?

It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear).

How is it powered?

PoE+(IEEE802.3at, Class4), 12VDC (Max. 19.2W, typical 11.0W).

What video compression does it support?

H.265/H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 1TB x 2slot(Total 2TB).

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision PND-A9082RV Specifications

SpecificationDetails
Video
Imaging Device - Size1/1.2"
Imaging Device - TypeCMOS
Resolution3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate - H.265/H.26430fps/25fps(60Hz/50Hz)
Max. Framerate - MJPEG30fps(@8MP Max. 5fps)
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.015
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.0015
Video OutUSB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
Lens
Focal Length (mm)5.9~13.3
Zoom Ratio - Optical2.25x
Max Aperture Ratio (F number) - Wide1.5
Max Aperture Ratio (F number) - Tele2.9
Angular Field of View - Horizontal109°~49°
Angular Field of View - Vertical59°~27°
Angular Field of View - Diagonal128°~56°
Min. Object Distance0.8m(2.62ft)
Focus ControlSimple focus
Lens TypeP iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~360°
Pan / Tilt / Rotate Range - Tilt-45°~85°
Pan / Tilt / Rotate Range - Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity32ea
Privacy Masking - Shape8point Polygonal zones
Privacy Masking - Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Privacy Masking - Dynamic Privacy Masking: Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDCSupport(Fill/stretch mode)
Electronic Shutter - ModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter - Speed Range2~1/30,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm Interface - In/Out2 configurable I/O ports
Alarm Interface - Others12VDC output, Support extra alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSelectable(mic in/line in), Built-in 3mics
Audio OutLine out
Light TypeIR LED
Light Viewable Length - IRWiseIR 60m(196.85ft)
IR Wavelength850nm
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
Attributes - PersonUpper/Lower clothes color, Gender, Bag
Attributes - VehicleType(car, bus, truck, motorcycle, bicycle), Color
Attributes - FaceAge, Gender, Face mask, Glasses
Similarity SearchSupport
ThumbnailBestShot
Analytics Events - Based on AI EngineObject detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Analytics Events - NormalDefocus detection, Tampering, Audio detection, Shock detection
Business Intelligence - Based on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps)
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - UnicastUp to 20 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 5 profiles, 3 virtual channel support
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface - ONVIFS, G, T, M
Application Programming Interface - OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC - TypeWisenet 9
SoC - Dual NPUSupport
Memory - RAM4GB
Memory - Flash8GB eMMC
Edge Storage - Micro SD/SDHC/SDXCMax. 1TB x 2slot(Total 2TB)
Edge Storage(OnCloud) - Micro SD/SDHC/SDXCMax. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition - Temperature-25°C~+50°C(-13°F~+122°F)
Operating Condition - Humidity0~100% RH(condensing)
Operating Condition - OthersHumidity control with AIR vent
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity0~90% RH(non-condensing)
EPA(Effective Projected Area)0.0148㎡
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power Consumption - PoEMax. 19.2W, typical 11.0W
Power Consumption - 12VDCMax. 16.5W, typical 9.5W
WisePowerPower monitoring
Power Redundance FailoverSupport
Mechanical
ColorWhite
MaterialAluminum, Hard-coated dome
RAL CodeRAL9003
Product Dimensionsø160x125mm(ø6.30x4.92")
Product Weight1550g(3.42lb)
Compatible Conduit Hole12.7mm(1/2")(M20)
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
AI Detection Distance
Person(1.8m/5.9ft) - Wideup to 47m(156ft)
Person(1.8m/5.9ft) - Teleup to 112m(367ft)
Vehicle(1.45m/4.8ft) - Wideup to 64m(210ft)
Vehicle(1.45m/4.8ft) - Teleup to 151m(495ft)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide54.8m(179.73ft)
Detect (25PPM/ 8PPF) - Tele168.5m(552.89ft)
Observe (63PPM/ 19PPF) - Wide21.9m(71.89ft)
Observe (63PPM/ 19PPF) - Tele67.4m(221.16ft)
Recognize (125PPM/ 38PPF) - Wide11.0m(35.95ft)
Recognize (125PPM/ 38PPF) - Tele33.7m(110.58ft)
Identify (250PPM/ 76PPF) - Wide5.5m(17.97ft)
Identify (250PPM/ 76PPF) - Tele16.9m(55.29ft)
