Samsung Hanwha Vision

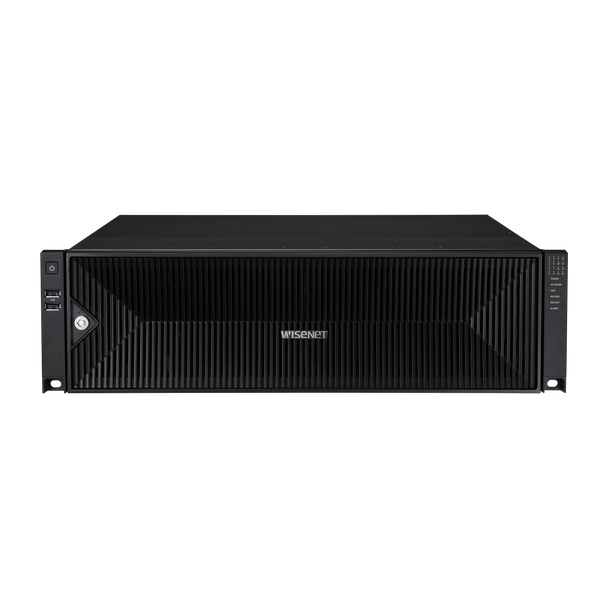

Hanwha Vision NVR, PRN-6400DB4
- SKU:
- PRN-6400DB4
- UPC:
- 8801089204974
- Condition:
- New
Description
Hanwha Vision NVR, PRN-6400DB4
8K NVR (Intel based), No HDD, 64 channels, H.265, H.264, MJPEG, 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping, add AI to some P, X and Q series Hanwha Cameras, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code. NDAA & FCC Compliant Model. .
- 8K NVR, up to 64 channels, License-free recording
- Supports H.265, H.264, & MJPEG CODECs,
- Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
- ARB (Automatic Recovery Backup)
- 400 Mbps recording / up to 32 Mbps playback
- Dual stream recording, WiseStream technology
- HDMI/VGA dual display, max. resolution of 32MP recording/display
- Add AI search capabilities to select P, X and Q series Hanwha Cameras
- AI search (Wisenet AI cameras only)
- web UI 2.0 (no plugins required)
- P2P / QR Code for easy connection to Wisenet Viewer / Wisenet Mobile
- NDAA & FCC Compliant
Network camera |
|
Network camera > Inputs |
Max. 64CH |
Network camera > Resolution |
32MP ~ CIF |
Network camera > Protocols |
Wisenet, ONVIF |
Decoding |
|
Decoding > Local Display |
[Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
Decoding > Multi Screen Display |
[Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
Decoding > Resolution |
32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) |
Performance |
|
Operating System |
|
Operating System > Embedded |
Linux |
Record |
|
Record > Compression |
H.265, H.264, MJPEG, WiseStream(H.265, H.264) |
Record > Recording Bandwidth |
Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps {RAID mode} Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps |
Record > Resolution |
32MP ~ CIF |
Record > Mode |
Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
Record > Event Trigger |
Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
Record > Event Action |
e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown |
Search & Play |
|
Search & Play > Playback Bandwidth |
Max. 64Mbps(64CH simultaneously) |
Search & Play > User |
Max. 4 Users (Local 1, Remote 3) |
Search & Play > Simultaneous playback |
Max. 112CH(Local 64CH, Remote 16CH per user) |
Search & Play > Fisheye Dewarping |
Support (Local 1CH), CMS |
Search & Play > Mode |
Date & Time(Calendar), Event list, Text Search, Smart Search |
Search & Play > Resolution |
CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
Search & Play > Playback Control |
Fast/Slow Forward / Backward, Move one step Up / Down |
Storage |
|
Storage > Supported HDD |
Up to 10TB |
Storage > HDD Slot |
SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap |
Storage > External |
iSCSI storage |
Storage > RAID |
RAID-5/6(Array Size : 8 HDD x 2 Array) |
Backup |
|
Backup > File backup |
BU/Exe/AVI(GUI), JPG/AVI(Network) |
Backup > Function |
Multi channel(Up to 16CH) Play, Date-Time/Title display |
Network |
|
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
DDNS |
Hanwha DDNS |
Transmission Bandwidth |
Max. 400Mbps |
Audio |
|
Audio > Input/Output |
64 CH(network) |
Audio > Compression |
G.711, G.726, AAC(16/48KHz) |
Audio > Audio Communication |
2-Way |
Max Remote Users |
Search(3), Live Unicast(10), Multicast(20) |
Security |
IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
Web viewer |
|
Web viewer > Supported OS |
Windows 10, macOS 10.13 |
Web viewer > Supported browser |
Google Chrome, Microsoft Edge, Mac Safari |
Viewer Software |
SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
Functions |
|
Camera Setup |
|
Camera Setup > Register |
Auto, Manual |
Camera Setup > Item |
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
PTZ |
|
PTZ > Control |
Via GUI, Webviewer, SPC-2000 |
PTZ > Preset |
300 Presets |
Smart phone |
|
Smart phone > Support Model |
iOS, Android |
Smart phone > Protocol Support |
RTP, RTSP, HTTP, CGI(SUNAPI) |
Smart phone > Control |
Live 16CH(Multi-Profile Support), Playback 4CH |
Smart phone > Max. Remote Users |
Search(3), Live Unicast(10) |
Redundancy |
|
Redundancy > Failover |
N+1 |
Redundancy > ARB |
Support |
Easy configuration |
P2P(QR code) |
Interface |
|
Front |
|
Front > Indicator |
HDD, Alarm, Power, Record, Backup, Network, RAID |
Storage |
OK |
Reset |
Power button |
HDD Key Lock |
OK |
HDMI |
2EA |
Audio |
Out 1EA (3.5mm Audio Jack) |
Ethernet |
RJ-45 3EA (LAN/WAN, 1Gbps) |
Alarm |
In 8EA, Out 4EA |
USB |
4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
Power inlet |
AC 2EA |
System |
|
Log |
|
Log > Log List |
Max. 100,000 (System Log, Event Log each) |
System Control |
Mouse, Keyboard, Web, Controller (SPC-2000) |
Language |
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental |
|
Operating Temperature |
0°C to +40°C(32℉ to 104℉) |
Operating Humidity |
20% ~ 85% RH |
Electrical |
|
Power Input |
100 ~ 240 VAC ±10%; 50/60 Hz (Dual SMPS) |
Power Consumption |
Max. 285W (972.5 BTU with HDD 16ea) |
Mechanical |
|
Color / Material |
Black / Metal |
Dimension (WxHxD) |
440.0 x 132.0 x 571.1mm |
Weight |
Approx. 14.3Kg(31.5 lb, HDD not included) |
Intelligent Analysis |
|
AI Search |
|
AI Search > Object Attribute |
Person, Face(with Wisenet AI camera), Vehicle, Lisence plate |
AI Search > LPR |
English, Number (Wisenet AI, P/X Camera) |
