Hanwha Vision SPA-W100W IP Wall Speaker
Description

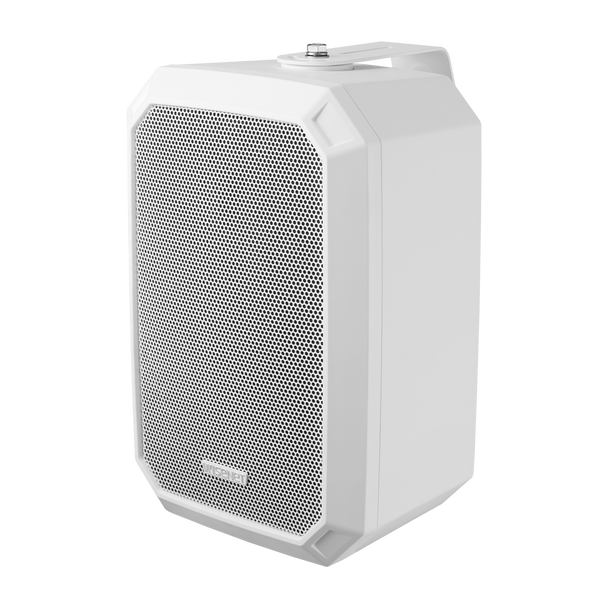

Hanwha Vision SPA-W100W – IP Wall Speaker
The Hanwha Vision SPA-W100W is an IP Wall Speaker built for paging, announcements and audio deterrence. IP Audio Speaker; Two-way audio, Scheduler; Background Music.
Key Specifications
| Network / PoE ports | 10/100 Base-T |
| Operating temperature | -20°~+50°C(-4°F~+122°F) |
| IP Audio Type | IP Wall Speaker |
| Output Level | +6 dBV ±3 dB |
| Frequency Response | 20Hz~20kHz |
| THD + N Ration (AES17LPF) | Less than 0.1% |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
| Description | Built in 10W Class D |
| Ethernet | 10/100 Base-T |
| Internal Memory | 1 GBytes |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision SPA-W100W?
- IP Audio Speaker
- Two-way audio, Scheduler
- Background Music
- Text To Speech, 10W Amp
- 101dB Output
- Freq. Range 120Hz-20kHz
- 1GB Internal Storage
- Single Micro SD slot (Up to 32GB)
Networking, Security and Software
Network details: ports: 10/100 Base-T; security: Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log).
Typical Applications
- Schools
- Retail stores
- Warehouses
Compare Hanwha Vision SPA Series
| Model | Key spec | Type | Best for |
|---|---|---|---|
| Hanwha Vision SPA-W100W (this model) | - | IP Wall Speaker | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-C110B | - | IP Ceiling Speaker | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-C110W | - | IP Ceiling Speaker | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-D1000 | - | IP Audio Module | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-H100B | - | IP Horn Speaker | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-H100W | - | IP Horn Speaker | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-P100B | - | IP Pendant Speaker | Paging, announcements and audio deterrence |
| Hanwha Vision SPA-P100W | - | IP Pendant Speaker | Paging, announcements and audio deterrence |
Explore More
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision SPA-W100W
What is the Hanwha Vision SPA-W100W?
IP Wall Speaker. IP Audio Speaker; Two-way audio, Scheduler.
What network ports does it have?
10/100 Base-T.
What is the operating temperature?
-20°~+50°C(-4°F~+122°F).
Where can I find the full specifications?
The full manufacturer specifications are listed in the Detailed Specifications tab.
Detailed Specifications
Hanwha Vision SPA-W100W Specifications
| Specification | Details |
|---|---|
| Product | |
| IP Audio Type | IP Wall Speaker |
| Line Ouput | |
| Output Level | +6 dBV ±3 dB |
| Frequency Response | 20Hz~20kHz |
| THD + N Ration (AES17LPF) | Less than 0.1% |
| S/N Ration (20kHz LPF, A-WTD) | Greater than 91 dB |
| Amplifier | |
| Description | Built in 10W Class D |
| Network | |
| Ethernet | 10/100 Base-T |
| Memory | |
| Internal Memory | 1 GBytes |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
| Contact | |
| Contact Input. Dry contact | One Channel |
| Contact Output. Dry contact (NO) | One channel |
| General | |
| Operating Temperature | -20°~+50°C(-4°F~+122°F) |
| Operating Humidity | 10~85%RH(Non-Condensing) |
| IP Code | IP54 |
| Weight | 2.5Kg (5.5lb) |
| Size | 170(W) x 250(H) x 134(D)mm |
| Color | White |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
| Power | |
| PoE | PoE (IEEE 802.3 af type 1 Class 3) |
| PoE+ | (IEEE 802.3 at type 2 Class 4) |
| Power | N/A |
| Audio | |
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16kHz up to 48 kHz |
| Speaker | |
| Speaker Component | 2 Way 5" LF Drive & 0.5" HF Driver. Passive type |
| Max. Sound Pressure Level (PoE) | 97 dB |
| Max. Sound Pressure Level (PoE+) | 101 dB |
| Frequency Range (-10 dB) | 120 Hz~20 kHz |
| Sensitivity (1 Watt) | 91 dB |
| Coverage Pattern | (HxV) : 180° X 120° (1 kHz) / 120° X 70°(4 kHz) |
| Network Protocol | |
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
| System Integration | |
| Application Programming Interface | SUNAPI(HTTP API), ONVIF Profile S |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously), Up to 256 Zone Control (Multicast), Up to 20 Zone Control (Unicast), Up to 255 Groups |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 |
| TTS | English (US, UK), German, French, Spanish, Russian |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) |
| Event & Preset | Virtual Contact, Dry contact |
| Functional Monitoring | Connection verification, Built-in system logging |
