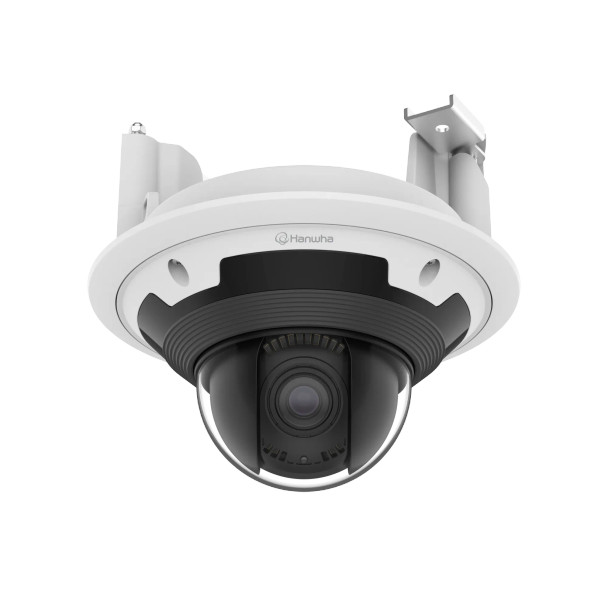

Hanwha Vision Flush mount, SHD-1370FPW
Description
Hanwha Vision Flush mount, SHD-1370FPW
In-ceiling Mount Plenum compatible with XNV-6123R, XNV-6083RZ/8083RZ/9083RZ, XNV-6083Z/8083Z, XNV-6083R/8083R/8093R/9083R, XNV-8082R/9082R, PNV-A6081R/A9081R
|
Environmental |
|
|
Operating Temperature / Humidity |
None |
|
Storage Temperature / Humidity |
None |
|
Fan/Heater |
None |
|
Certification |
None |
|
Electrical |
|
|
Input Voltage |
None |
|
Power Consumption |
None |
|
Mechanical |
|
|
Color |
White |
|
Material |
Aluminum |
|
RAL code |
RAL9003 |
|
Product dimensions / weight |
ø205x103mm (ø8.07x4.05") / 770g (1.70lb) ※ Ceiling hole size : ø181mm (ø7.12") |
|
Pan / Tilt / Rotate Range |
None |
|
Tile thickness |
10~70mm (0.4~2.8") |
|
Mount Screw size |
TR20 |
|
Max. load |
3kg (6.61lb) |
|
Conduit hole |
12.7mm(1/2") (M20) / 19.1mm(3/4") (M25) |
|
Supported products |
PNV-A6081R/A9081R, XNV-8082R/9082R, XNV-6083R/8083R/8093R/9083R, XNV-6123R, XNV-6083Z/8083Z, XNV-6083RZ/8083RZ/9083RZ |
