Hanwha Vision TNM-C2722TDR Bi-spectrum Early Fire Detection Camera

Brand: Hanwha Vision America
SKU:
TNM-C2722TDR
Condition:
New
(No reviews yet) Write a Review

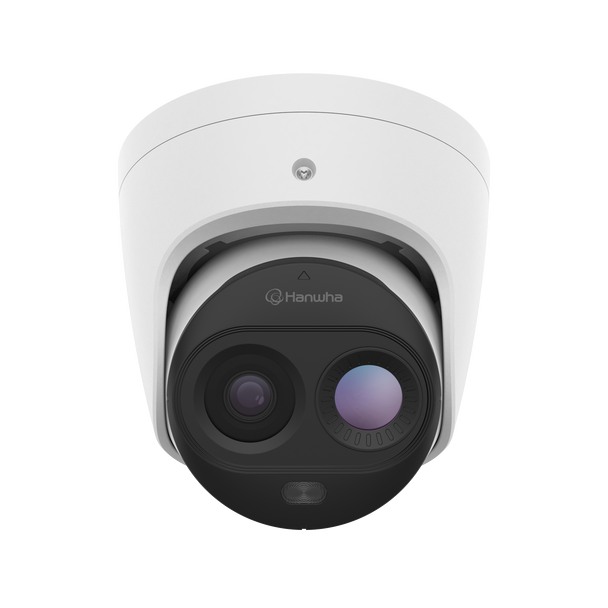

  • Hanwha Vision Bi-spectrum Early Fire Detection Camera, TNM-C2722TDR
  • Hanwha Vision TNM-C2722TDR Bi-spectrum Early Fire Detection Camera
  • Hanwha Vision Bi-spectrum Early Fire Detection Camera, TNM-C2722TDR
  • Hanwha Vision Bi-spectrum Early Fire Detection Camera, TNM-C2722TDR
Price: $1,855.10

Description

Hanwha Vision TNM-C2722TDR – Bi-spectrum Early Fire Detection Camera

The Hanwha Vision TNM-C2722TDR is a bi-spectrum early fire detection camera built for perimeters, fence lines and total darkness. It offers 3MP video. It is rated IP66, IP67 and IK09.

Per Hanwha Vision, thermal cameras with frame rates under 9 fps do not require end user export documentation.

Key Specifications

Max video resolution 2048x1536 (3MP)
Max frames per second Ch 1: 30fps/25fps(60Hz/50Hz) / Ch 2: 8fps
Thermal detector Ch 1: CMOS / Ch 2: Uncooled micro bolometer (160x120)
Thermal sensitivity (NETD) ≤50mK
Focal length / lens Ch 1: 4.46 / Ch 2: 1.9 mm
Horizontal field of view Ch 1: 69 / Ch 2: 57
Wide dynamic range 120 dB
Min illumination (color) 0.06 lux
Power PoE(IEEE802.3af, Class3) · Max 10.8W, typical 6.2W
IP / vandal rating IP66, IP67, IK09
Operating temperature -30°C~+55°C(-22°F~+131°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision TNM-C2722TDR?

  • 3MP 2048x1536 video at up to Ch 1: 30fps/25fps
  • Ch 1: 4.46 / Ch 2: 1.9 mm lens and a Ch 1: 69 / Ch 2: 57 horizontal view
  • Ch 1: CMOS / Ch 2: Uncooled micro bolometer (160x120) thermal detector, NETD ≤50mK
  • 120 dB WDR for bright and backlit scenes
  • Built-in cybersecurity: Encrypted firmware, Secure boot, Signed firmware
  • IP66, IP67, IK09 rated housing
  • Power: PoE(IEEE802.3af, Class3)

Thermal Detection Day and Night

The TNM-C2722TDR uses Ch 1: CMOS / Ch 2: Uncooled micro bolometer (160x120) with NETD ≤50mK, so it detects people and vehicles by heat signature in total darkness, smoke and light fog.

Coverage and Resolution

A Ch 1: 4.46 / Ch 2: 1.9 mm lens covers a Ch 1: 69 / Ch 2: 57 horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 7.1m(23.2ft); resolution is up to 2048x1536 at Ch 1: 30fps/25fps(60Hz/50Hz) / Ch 2: 8fps.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE(IEEE802.3af, Class3) (Max 10.8W, typical 6.2W); operating temperature: -30°C~+55°C(-22°F~+131°F); ratings: IP66, IP67, IK09; edge storage: Max. 512GB x 1slot.

Typical Applications

  • Perimeters and fence lines
  • Critical infrastructure
  • Total-darkness areas
  • Waterfronts and ports

Compare Hanwha Vision Bi-Spectrum Cameras

ModelMax resolutionTypeBest for
Hanwha Vision TNM-C3620TDR 1MP Bi-spectrum AI radiometric camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C3622TDR QVGA thermal / 2MP Bi-spectrum AI radiometric camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C2712TDR 3MP Bi-spectrum early fire detection camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C2722TDR (this camera) 3MP Bi-spectrum early fire detection camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C4940TD VGA thermal / 4K Bi-spectrum AI thermal camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C4940TDR VGA thermal / 4K Bi-spectrum AI radiometric camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C4942TDR VGA thermal / 4K Bi-spectrum AI radiometric camera Perimeters, fence lines and total darkness
Hanwha Vision TNM-C4950TD VGA thermal / 4K Bi-spectrum AI thermal camera Perimeters, fence lines and total darkness

Explore More

Frequently Asked Questions About Hanwha Vision TNM-C2722TDR

What resolution does the Hanwha Vision TNM-C2722TDR capture?

Up to 2048x1536 (3MP) at Ch 1: 30fps/25fps(60Hz/50Hz) / Ch 2: 8fps.

What lens does it use?

Ch 1: 4.46 / Ch 2: 1.9 mm; horizontal field of view Ch 1: 69 / Ch 2: 57.

What thermal detector does it use?

Ch 1: CMOS / Ch 2: Uncooled micro bolometer (160x120), NETD ≤50mK.

Can it be installed outdoors?

Yes. It is rated IP66, IP67, IK09 and operates from -30°C~+55°C(-22°F~+131°F).

How is it powered?

PoE(IEEE802.3af, Class3) (Max 10.8W, typical 6.2W).

Does it support onboard storage?

Yes: Max. 512GB x 1slot.

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware.

What are the dimensions and weight of the Hanwha Vision TNM-C2722TDR?

Dimensions: ø110x97 mm (ø4.33x3.82 in). Weight: 1.43 lb.

View AllClose

Detailed Specifications

Hanwha Vision TNM-C2722TDR Specifications

SpecificationDetails
Video
Imaging Device - Size1/2.8"
Imaging Device - TypeCh 1: CMOS / Ch 2: Uncooled micro bolometer (160x120)
ResolutionCh 1: 2048x1536, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 / Ch 2: 640x480, 320x240
Max. Framerate - H.265/H.264Ch 1: 30fps/25fps(60Hz/50Hz) / Ch 2: 8fps
Max. Framerate - MJPEG5fps
Spectral Range8~14㎛
NETD≤50mK
Pixel Size12㎛
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.06
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.06
Lens
Focal Length (mm)Ch 1: 4.46 / Ch 2: 1.9
Max Aperture Ratio (F number) - WideCh 1: F1.65 / Ch 2: F1.1
Angular Field of View - HorizontalCh 1: 69 / Ch 2: 57
Angular Field of View - VerticalCh 1: 50.8 / Ch 2: 44
Angular Field of View - DiagonalCh 1: 88.9 / Ch 2: 71
Min. Object DistanceCh 1: 1.9m(6.2ft) / Ch 2: 0.3m(0.98ft)
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~360°
Pan / Tilt / Rotate Range - Tilt0°~70°
Pan / Tilt / Rotate Range - Rotate0°~360°
Operational
Day & NightAuto(Electrical)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity6ea
Privacy Masking - ShapeRectangular zones
Privacy Masking - Color / OptionGray, Black, White
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic Shutter - ModeMinimum, Maximum, Anti flicker
Electronic Shutter - Speed Range1/5~1/12,000sec
Video RotationFlip, Mirror
Alarm Interface - In/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication, Light alarm
Audio InSelectable(mic in/line in)
Audio OutLine out
Color PallettesWhitehot, Sepia, Red, Custom
Radiometry
Temperature Detect Range-10°C~450°C
Temperature AccuracyGreater of ±10°C or 10%
Temperature Detection ROI Zones - Quantity2ea
Temperature Detection ROI Zones - Shape / OptionRectangle
Spot Temperature ReadingSupport
ROI Condition MonitoringAbove, Below, Increase, Decrease
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
Memory - RAM2GB
Memory - Flash512MB
Edge Storage - Micro SD/SDHC/SDXCMax. 512GB x 1slot
Environmental & Electrical
Operating Condition - Temperature-30°C~+55°C(-22°F~+131°F)
Operating Condition - Humidity0~95% RH(non-condensing)
Operating Condition - OthersStart up should be done at above -10°C
Storage Condition - Temperature-40°C~+60°C(-40°F~+140°F)
Storage Condition - Humidity0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power Consumption - PoEMax 10.8W, typical 6.2W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product DimensionsØ110x97mm(ø4.33x3.82")
Product Weight650g(1.43lb)
Compatible Gang BoxSingle
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK09
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide70.9m(232.6ft)
Observe (63PPM/ 19PPF) - Wide28.4m(93.1ft)
Recognize (125PPM/ 38PPF) - Wide14.2m(46.5ft)
Identify (250PPM/ 76PPF) - Wide7.1m(23.2ft)
Thermal Detection Range
Temperature Detection15m(49.21ft)
Early Fire Detection15m(49.21ft)
