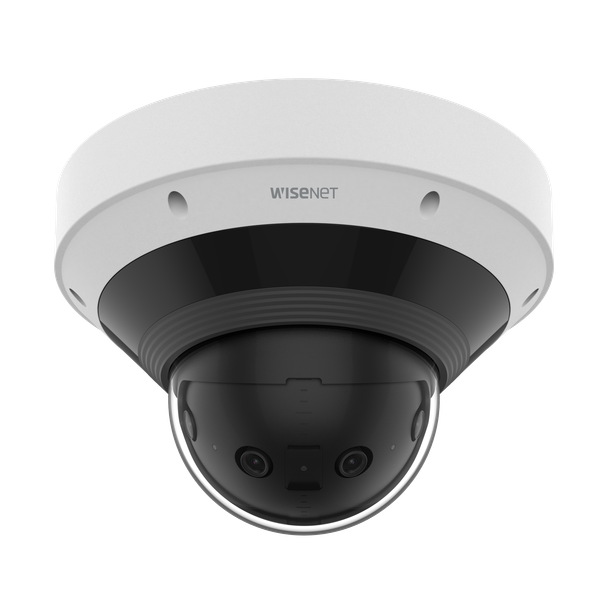

Hanwha Vision 13MP AI IR Panoramic Network Camera, PNM-A13022RV

Hanwha Vision PNM-A13022RV 13MP AI IR Panoramic Camera

The Hanwha Vision PNM-A13022RV is a professional 13MP AI IR panoramic network camera designed to provide expansive wide-angle video surveillance with advanced artificial intelligence analytics. With a 5120 x 2592 maximum resolution, an ultra-wide 194° horizontal field of view, and up to 30 fps, the PNM-A13022RV delivers detailed coverage across large areas while reducing the need for multiple conventional security cameras.

Designed for demanding commercial, industrial, retail, transportation, and outdoor surveillance applications, the PNM-A13022RV combines high-resolution imaging, 120 dB WDR, integrated IR illumination, AI-based object detection, business intelligence analytics, and rugged IP66, IK10, and NEMA 4X protection.

13MP Panoramic Coverage with Ultra-Wide 194° Field of View

The PNM-A13022RV provides an expansive 194° horizontal and 93° vertical field of view, allowing a single camera to monitor a large area with minimal blind spots. Its 3.06 mm fixed lens and 1/2.8" CMOS sensor provide wide-area coverage suitable for entrances, retail spaces, parking areas, building perimeters, and other locations requiring broad situational awareness.

The camera supports resolutions up to 5120 x 2592 and frame rates up to 30 fps, providing detailed and smooth video for security monitoring and forensic review.

AI-Powered Video Analytics

The PNM-A13022RV uses an integrated AI engine to detect, classify, and analyze people, faces, vehicles, and license plates. Advanced object attributes can provide additional information such as clothing color, vehicle type and color, and facial characteristics.

Built-in analytics include:

• Object detection
• Person, face, vehicle, and license plate classification
• Virtual line crossing and direction detection
• Intrusion, loitering, enter, and exit detection
• Motion detection
• Slip-and-fall detection
• Face mask detection
• Social distancing detection
• Tampering and defocus detection
• Audio detection
• BestShot thumbnails

Business Intelligence and People Counting

The Hanwha PNM-A13022RV also provides powerful business intelligence capabilities for applications where understanding customer and visitor activity is important.

Built-in analytics include:

• People counting
• Vehicle counting
• Crowd counting
• Queue management
• Heatmap analytics

These capabilities make the PNM-A13022RV particularly well suited for retail stores, commercial facilities, transportation locations, and other environments where security and business intelligence can be combined in one camera.

Integrated IR for Nighttime Surveillance

Built-in IR illumination provides coverage up to 20 meters (65.6 feet). Four individually controlled IR zones allow the camera to automatically or manually adjust IR intensity for more effective nighttime surveillance.

The camera supports automatic day/night operation using an IR-cut filter and provides minimum illumination down to 0.01 lux in black-and-white mode, helping maintain usable video in extremely low-light conditions.

120 dB Wide Dynamic Range

With up to 120 dB WDR, the PNM-A13022RV is designed to maintain image detail in scenes containing both bright and dark areas. This makes it particularly useful for entrances, storefronts, loading areas, parking structures, and other locations where lighting conditions can change significantly.

Hanwha's WiseNR II AI-based noise reduction and SSNR V further improve image quality in challenging lighting conditions.

Efficient H.265 Video Compression

The PNM-A13022RV supports H.265, H.264, and MJPEG video compression. Hanwha's WiseStream technology helps reduce bandwidth and storage requirements while maintaining important image details.

The camera supports multiple streaming profiles and provides flexible integration with modern video management systems through ONVIF Profiles S, G, T, and M, SUNAPI, and the Hanwha Vision Open Platform.

Built for Harsh Outdoor Environments

The PNM-A13022RV is designed for demanding indoor and outdoor installations. Its rugged enclosure provides:

• IP66 weather protection
• IK10 impact protection
• NEMA 4X environmental protection

The camera operates in temperatures from -40°F to 131°F (-40°C to 55°C) and supports operation in 0–100% relative humidity, including condensing environments.

PoE+ and Local Storage

The PNM-A13022RV supports PoE+ (IEEE 802.3at Class 4) as well as 12V DC power. Typical PoE power consumption is approximately 11.5W, with maximum power consumption of 22.3W.

For local recording, the camera includes two microSD/SDHC/SDXC card slots supporting up to 1TB per slot, for a total of up to 2TB of edge storage.

Advanced Cybersecurity

Hanwha Vision incorporates multiple security features into the PNM-A13022RV, including encrypted and signed firmware, secure boot, secure communications, IEEE 802.1X authentication, secure element technology, and encrypted SD card partitions.

The camera's secure element is FIPS 140-3 Level 3 and CC EAL6+ certified, providing hardware-based protection for sensitive credentials and cryptographic operations.

Key Features

• Hanwha Vision PNM-A13022RV
• 13MP AI IR panoramic network camera
• Maximum resolution: 5120 x 2592
• Up to 30 fps
• 194° horizontal field of view
• 93° vertical field of view
• 3.06 mm fixed lens
• 1/2.8" CMOS sensor
• 120 dB WDR
• Built-in 20 m / 65.6 ft IR illumination
• Four individually controlled IR zones
• AI-based object detection and classification
• Person, face, vehicle, and license plate detection
• Person and vehicle attribute recognition
• Slip-and-fall detection
• Face mask detection
• Social distancing detection
• People counting
• Vehicle counting
• Crowd counting
• Queue management
• Heatmap analytics
• BestShot functionality
• H.265 / H.264 / MJPEG
• WiseStream bandwidth optimization
• ONVIF Profiles S, G, T, and M
• Dual microSD card slots
• Up to 2TB total edge storage
• PoE+
• 12V DC power support
• IP66
• IK10
• NEMA 4X
• Operating temperature: -40°F to 131°F
• FIPS 140-3 Level 3 secure element
• CC EAL6+ certified security
• White housing

Ideal Applications

The Hanwha Vision PNM-A13022RV is an excellent solution for:

• Retail stores and shopping centers
• Commercial buildings
• Office buildings
• Warehouses and distribution centers
• Parking facilities
• Transportation facilities
• Schools and universities
• Building entrances
• Loading areas
• Industrial facilities
• Outdoor commercial properties
• Large indoor spaces
• Customer and visitor monitoring
• Business intelligence applications
