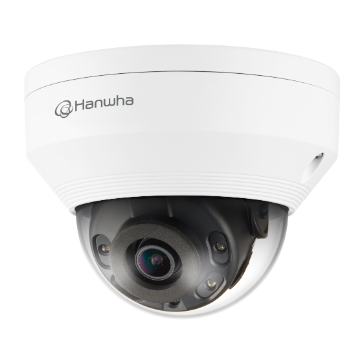

Hanwha Vision QND-8080R 5MP Indoor IR Dome Camera
Description
Hanwha Vision QND-8080R – 5MP Indoor IR Dome
The Hanwha Vision QND-8080R is a 5MP IR indoor dome camera with a motorized 3.2-10 mm varifocal lens (101°~31° horizontal view). It captures 5MP video at up to 30 fps with 120 dB WDR and WiseStream II compression, with a built-in SD card slot for up to 128 GB. It runs on PoE power and is suited to hallways, stairwells and dark rooms.
Key Specifications
| Max video resolution | 2592x1944 (5MP) |
| Max frames per second | 30fps/25fps(60Hz/50Hz) |
| Image sensor | 1/2.8" CMOS |
| Focal length / lens | 3.2~10 mm · 3.1x optical zoom |
| Horizontal field of view | 101°~31° |
| Wide dynamic range | 120 dB |
| Min illumination (color) | 0.15 lux |
| Built-in IR | 20m(65.62ft) |
| Power | PoE(IEEE802.3af, Class3) · Max. 8.90W, typical 6.60W |
| Operating temperature | -10°C~+55°C(+14°F~+131°F) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision QND-8080R?
- 5MP 2592x1944 video at up to 30fps/25fps
- 3.2~10 mm lens with 3.1x optical zoom and a 101°~31° horizontal view
- 120 dB WDR for bright and backlit scenes
- Built-in IR: 20m(65.62ft)
- Built-in cybersecurity: Encrypted firmware
- Power: PoE(IEEE802.3af, Class3)
Clear Video Day and Night
The QND-8080R captures color video down to 0.15 lux; its built-in IR reaches 20m(65.62ft); 120 dB WDR keeps detail in scenes with bright and dark areas.
Coverage and Resolution
A 3.2~10 mm lens with 3.1x optical zoom covers a 101°~31° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 4.3m(14.19ft); resolution is up to 2592x1944 at 30fps/25fps(60Hz/50Hz).
Built-In Cybersecurity
Security features include firmware protection: Encrypted firmware; IEEE 802.1X network authentication.
Installation and Integration
Key installation details: power input: PoE(IEEE802.3af, Class3) (Max. 8.90W, typical 6.60W); operating temperature: -10°C~+55°C(+14°F~+131°F); edge storage: Max. 128GB x 1slot; compression: H.265/H.264: Main/High, MJPEG.
Typical Applications
- Hallways
- Stairwells
- Dark rooms and back offices
Compatible Accessories
Compatible accessories for the Hanwha Vision QND-8080R. Linked items are available at Affinitech Store; contact us for the others:
Mounts
- Hanwha Vision SBP-122HMW Hanging Mount (White)
- Hanwha Vision SBP-120WMW Indoor Wall Mount (White)
- Hanwha Vision SBP-300WMW1 White Wall Mount
- Hanwha Vision SBP-300CMW White Pendant Mount
- Hanwha Vision SBP-300LMW Parapet mount (White)
- Hanwha Vision SBP-300PMW
- Hanwha Vision SBP-300BW Mount Base
- Hanwha Vision SBP-300KMW
Back Boxes, Housings and Adapters
Compare Hanwha Vision QND Series Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Hanwha Vision QND-7022R | 4MP | 4MP IR Dome | Hallways, stairwells and dark rooms |
| Hanwha Vision QND-7032R | 4MP | 4MP IR Dome | Hallways, stairwells and dark rooms |
| Hanwha Vision QND-7082R | 4MP | 4MP IR Dome | Hallways, stairwells and dark rooms |
| Hanwha Vision QND-8010R | 5MP | 5MP Indoor IR Dome | Hallways, stairwells and dark rooms |
| Hanwha Vision QND-8011 | 5MP | 5MP Indoor Dome | Classrooms, retail and offices |
| Hanwha Vision QND-8020R | 5MP | 5MP Indoor IR Dome | Hallways, stairwells and dark rooms |
| Hanwha Vision QND-8021 | 5MP | 5MP Indoor Dome | Classrooms, retail and offices |
| Hanwha Vision QND-8080R (this camera) | 5MP | 5MP Indoor IR Dome | Hallways, stairwells and dark rooms |
Explore More
- Browse Dome Cameras at Affinitech Store
- Browse IR Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision QND-8080R
What resolution does the Hanwha Vision QND-8080R capture?
Up to 2592x1944 (5MP) at 30fps/25fps(60Hz/50Hz).
What lens does it use?
3.2~10 mm with 3.1x optical zoom; horizontal field of view 101°~31°.
Does it see in the dark?
Yes. Built-in IR reaches 20m(65.62ft).
What is the operating temperature?
-10°C~+55°C(+14°F~+131°F).
How is it powered?
PoE(IEEE802.3af, Class3) (Max. 8.90W, typical 6.60W).
What video compression does it support?
H.265/H.264: Main/High, MJPEG.
Does it support onboard storage?
Yes: Max. 128GB x 1slot.
What cybersecurity features are built in?
Encrypted firmware.
Is it ONVIF compliant?
Yes, ONVIF Profile S, G, T.
Detailed Specifications
Hanwha Vision QND-8080R Specifications
| Specification | Details |
|---|---|
| Video | |
| Imaging Device - Size | 1/2.8" |
| Imaging Device - Type | CMOS |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate - H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate - MJPEG | 15fps |
| Min. Illumination (Lux) - Color(1/30sec, 30IRE) | 0.15 |
| Min. Illumination (Lux) - BW(1/30sec, 30IRE) | 0.015 |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
| Lens | |
| Focal Length (mm) | 3.2~10 |
| Zoom Ratio - Optical | 3.1x |
| Max Aperture Ratio (F number) - Wide | 1.6 |
| Max Aperture Ratio (F number) - Tele | 2.9 |
| Angular Field of View - Horizontal | 101°~31° |
| Angular Field of View - Vertical | 73°~23° |
| Angular Field of View - Diagonal | 133°~38° |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range - Pan | 0°~350° |
| Pan / Tilt / Rotate Range - Tilt | 0°~67° |
| Pan / Tilt / Rotate Range - Rotate | 0°~355° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | SSNR |
| Motion Detection - Quantity | 4ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 6ea |
| Privacy Masking - Shape | Rectangular zones |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter - Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter - Speed Range | 1/5~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface - In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output |
| Light Type | IR LED |
| Light Viewable Length - IR | 20m(65.62ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Analytics Events - Normal | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 6 users |
| Streaming - Multicast | Support |
| Streaming - Multiple Streaming | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Application Programming Interface - ONVIF | S, G, T |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Optional (needs gateway) |
| Security | |
| OS / Firmware Protect | Encrypted firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
| General | |
| Memory - RAM | 512MB |
| Memory - Flash | 256MB |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
| Environmental & Electrical | |
| Operating Condition - Temperature | -10°C~+55°C(+14°F~+131°F) |
| Operating Condition - Humidity | 0~90% RH(non-condensing) |
| Storage Condition - Temperature | -30°C~+60°C(-22°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption - PoE | Max. 8.90W, typical 6.60W |
| Mechanical | |
| Color | White |
| Material | Aluminum, Plastic |
| RAL Code | RAL9003 |
| Product Dimensions | ø120.3x102.0mm(ø4.74x4.02") |
| Product Weight | 430g(0.95lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) - Wide | 43.3m(141.94ft) |
| Detect (25PPM/ 8PPF) - Tele | 185.7m(609.09ft) |
| Observe (63PPM/ 19PPF) - Wide | 17.3m(56.78ft) |
| Observe (63PPM/ 19PPF) - Tele | 74.3m(243.64ft) |
| Recognize (125PPM/ 38PPF) - Wide | 8.7m(28.39ft) |
| Recognize (125PPM/ 38PPF) - Tele | 37.1m(121.82ft) |
| Identify (250PPM/ 76PPF) - Wide | 4.3m(14.19ft) |
| Identify (250PPM/ 76PPF) - Tele | 18.6m(60.91ft) |
