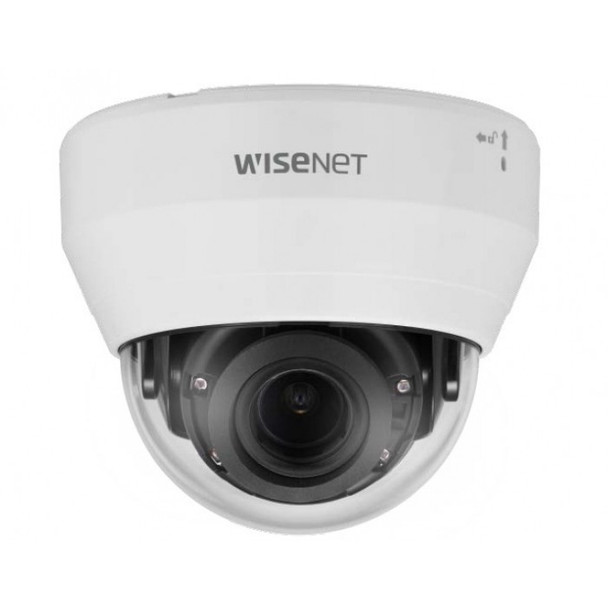

Hanwha Vision LND-6022R 2MP IR Dome Camera

Brand: Hanwha Vision America
SKU:
LND-6022R
Condition:
New
(No reviews yet) Write a Review
Price: $147.55

Description

Hanwha Vision LND-6022R – 2MP IR Dome

The Hanwha Vision LND-6022R is a 2MP IR dome camera built for hallways, stairwells and dark rooms. It offers 2MP video at up to 30 fps, a 4.0 mm fixed lens with a 85° horizontal view and built-in IR reaching 20 m (65 ft).

Key Specifications

Max video resolution 1920x1080 (2MP)
Max frames per second 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on)
Image sensor 1/2.8" CMOS
Focal length / lens 4.0 mm
Horizontal field of view 85°
Wide dynamic range 120 dB
Min illumination (color) 0.03 lux
Built-in IR 20m(65.62ft)
Power PoE(IEEE802.3af, Class3) · Max 6.4W, Typical 5.0W
Operating temperature -10°C~+55°C(+14°F~+131°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision LND-6022R?

  • 2MP 1920x1080 video at up to 30fps/25fps
  • 4.0 mm lens and a 85° horizontal view
  • 120 dB WDR for bright and backlit scenes
  • Built-in IR: 20m(65.62ft)
  • Built-in cybersecurity: Encrypted firmware
  • Power: PoE(IEEE802.3af, Class3)

Clear Video Day and Night

The LND-6022R captures color video down to 0.03 lux; its built-in IR reaches 20m(65.62ft); 120 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

A 4.0 mm lens covers a 85° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 4.2m(13.92ft); resolution is up to 1920x1080 at 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on).

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware; IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE(IEEE802.3af, Class3) (Max 6.4W, Typical 5.0W); operating temperature: -10°C~+55°C(+14°F~+131°F); edge storage: Max. 32GB x 1slot; compression: H.265/H.264: Main/Baseline/High, MJPEG.

Typical Applications

  • Hallways
  • Stairwells
  • Dark rooms and back offices

Compare Hanwha Vision L Series Cameras

ModelMax resolutionTypeBest for
Hanwha Vision LND-6022R (this camera) 2MP 2MP IR dome camera Hallways, stairwells and dark rooms
Hanwha Vision LNO-6012R 2MP 2MP IR bullet camera Parking lots, perimeters and loading docks

Explore More

Frequently Asked Questions About Hanwha Vision LND-6022R

What resolution does the Hanwha Vision LND-6022R capture?

Up to 1920x1080 (2MP) at 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on).

What lens does it use?

4.0 mm; horizontal field of view 85°.

Does it see in the dark?

Yes. Built-in IR reaches 20m(65.62ft).

What is the operating temperature?

-10°C~+55°C(+14°F~+131°F).

How is it powered?

PoE(IEEE802.3af, Class3) (Max 6.4W, Typical 5.0W).

What video compression does it support?

H.265/H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 32GB x 1slot.

What cybersecurity features are built in?

Encrypted firmware.

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T.

What are the dimensions and weight of the Hanwha Vision LND-6022R?

Dimensions: ø110x86 mm (ø4.33x3.39 in). Weight: 0.6 lb.

View AllClose

Detailed Specifications

Hanwha Vision LND-6022R Specifications

SpecificationDetails
Video
Imaging Device - Size1/2.8"
Imaging Device - TypeCMOS
Resolution1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate - H.265/H.26430fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on)
Max. Framerate - MJPEG10fps(@2MP Max. 2fps)
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.03
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.003
Lens
Focal Length (mm)4.0
Max Aperture Ratio (F number) - Wide2.0
Angular Field of View - Horizontal85°
Angular Field of View - Vertical46°
Angular Field of View - Diagonal99°
Min. Object Distance0.5m(1.64ft)
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~350°
Pan / Tilt / Rotate Range - Tilt0°~67°
Pan / Tilt / Rotate Range - Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNR
Motion Detection - Quantity4ea
Motion Detection - ShapeRectangler zones
Privacy Masking - Quantity6ea
Privacy Masking - ShapeRectangular zones
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic Shutter - ModeMinimum, Maximum, Anti flicker
Electronic Shutter - Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm TriggersAnalytics
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Light TypeIR LED
Light Viewable Length - IR20m(65.62ft)
IR Wavelength850nm
Analytics
Analytics Events - NormalMotion detection, Tampering
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecWiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - UnicastUp to 6 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 3 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast)
Application Programming Interface - ONVIFS, G, T
Application Programming Interface - OthersSUNAPI(HTTP API)
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectEncrypted firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
Memory - RAM512MB
Memory - Flash256MB
Edge Storage - Micro SD/SDHC/SDXCMax. 32GB x 1slot
Environmental & Electrical
Operating Condition - Temperature-10°C~+55°C(+14°F~+131°F)
Operating Condition - Humidity0~90% RH(non-condensing)
Storage Condition - Temperature-30°C~+55°C(-22°F~+131°F)
Storage Condition - Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power Consumption - PoEMax 6.4W, Typical 5.0W
Mechanical
ColorWhite
MaterialPlastic
RAL CodeRAL9003
Product Dimensionsø110.0x86.0mm(ø4.33x3.39")
Product Weight270g(0.6lb)
Compatible Gang BoxSingle, Double, 4" Octagon
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
EnvironmentIEC/EN 63000
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide42.4m(139.17ft)
Observe (63PPM/ 19PPF) - Wide17.0m(55.67ft)
Recognize (125PPM/ 38PPF) - Wide8.5m(27.83ft)
Identify (250PPM/ 76PPF) - Wide4.2m(13.92ft)
