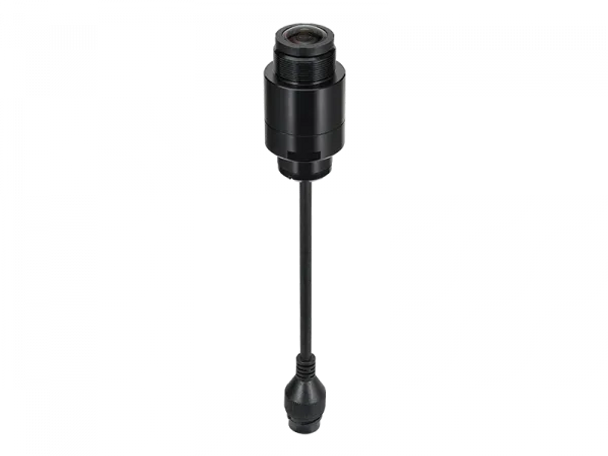

Hanwha Techwin 1.6mm fixed lens module, SLA-T1080F

(No reviews yet) Write a Review
SKU:
SLA-T1080F
UPC:
8801089125057
Condition:
New
  • Hanwha Techwin 1.6mm fixed lens module, SLA-T1080F
  • Hanwha Techwin 1.6mm fixed lens module, SLA-T1080F
  • Hanwha Techwin 1.6mm fixed lens module, SLA-T1080F
MSRP: $310.00
Price: $201.50
— You save $108.50
Frequently bought together:
Add all to cart

Description

Hanwha Techwin SLA-T1080F Overview

Customize your XNB-6001 camera with the metal-and-plastic WiseNet X Series 2MP 1.6mm Modular Camera Sensor Module from Hanwha Techwin. This sensor module integrates a 1/2.8" 2MP CMOS sensor and a 1.6mm fixed fisheye lens, enabling the XNB-6001 to capture video at up to 1945 x 1097 resolution in a 187 x 113.9° field of view. Featuring an electronic day/night filter and 120 dB wide dynamic range, the module is designed to deliver clear images in low-light conditions down to 0.03 lux and to balance exposure in scenes with sharp contrast lighting.

1.6mm fixed lens module, compatible with the XNB-6001, straight body style, 2MP @ 60fps, 0.03 Lux, 120dB WDR, 187º horizontal field of view, 8 meters cable (26 feet cable)

  • 1.6mm fixed lens module
  • Straight body style
  • 2MP resolution
  • 0.03 Lux
  • 120dB WDR
  • FoV: H: 187°
  • 8m (26ft) cable
  • For XNB-6001 Remote Head Camera
  • 1/2.8" 2MP Progressive Scan CMOS Sensor
  • 1945 x 1097 Effective Pixels
  • Minimum Illumination: 0.03 Lux
  • Electrical Day/Night
  • 1.6mm Fixed Lens with f/1.6 Aperture
  • 187 x 113.9° H/V Field of View
  • 120 dB Wide Dynamic Range
View AllClose

Detailed Specifications

Hanwha Techwin SLA-T1080F Specs

Video

Sensor

1/2.8" 2 MP Progressive Scan CMOS

Total Pixels

1945 x 1109

Effective Pixels

1945 x 1097

Minimum Illumination

At f/1.6:

Color: 0.03 Lux

S/N Ratio

50 dB

Wide Dynamic Range

120 dB

Day & Night

Electrical

Lens

Focal Length

1.6mm

Maximum Aperture

f/1.6

Field of View (H x V)

187 x 113.9°

Minimum Object Distance

0.98' / 0.3 m

Lens Type

Fixed Focal, Fisheye

Connection Interface

RJ12

Environmental

Operating Temperature

14 to 131°F / 10 to 55°

Storage Temperature

-58 to 140° / -50 to 60°

Relative Humidity, Operating/Non-Operating

Less than 90%

Physical

Housing Material

Metal/Plastic

Dimensions

Lens: 1.38 x 2.71" / 35.0 x 68.9 mm
Cable: 314. 96" / 8 m

Weight

0.71 lb / 321 g

Packaging Info

Package Weight

1.015 lb

Box Dimensions (LxWxH)

7.2 x 5.6 x 2.4"
View AllClose
