Anchor Audio CouncilMAN CM-6 6-User Wired Conference System Package
Description
Anchor Audio CouncilMAN CM-6 6-User Wired Conference System Package
The Anchor Audio CM-6 is a complete six-user CouncilMAN wired conference system in one package. It includes the AN-100CM+ speaker monitor, one CHM-100 chairman microphone, five DEL-100 delegate microphones, five EX-4M 4 ft. XLR cables, one EX-25M 25 ft. XLR cable and a sturdy cardboard carrying case. The microphones daisy chain with XLR cables and are powered by the speaker, the chairman can mute all delegates, and the system reaches crowds of 150+. It is a ready-to-run choice for city councils, school boards and committees.
Key Specifications
| Specification | Details |
|---|---|
| Package | CM-6, 6-user wired conference system |
| Speaker | AN-100CM+, 30 W, 103 dB at 1 m |
| Microphones | 1 CHM-100 chairman, 5 DEL-100 delegate |
| Cables | 5 EX-4M (4 ft.), 1 EX-25M (25 ft.) XLR |
| Case | Sturdy cardboard carrying case |
| Expansion | Up to 11 conference mics per AN-100CM+ |
| Chairman control | Mutes all delegate mics |
| Coverage | Crowds of 150+ |
| Line input | 3.5 mm AUX |
| Line output | XLR and 1/4-inch balanced |
| Power | 110 to 125 VAC |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Anchor Audio CM-6?
- Everything for a six-seat meeting in one box
- Chairman microphone can mute all delegate microphones
- Each microphone has its own volume control
- Mics daisy chain with included XLR cables and are powered by the speaker
- Expand to up to 11 conference microphones with extra DEL-100 mics
- Balanced line outputs for recording or house sound
- Reaches crowds of 150+
What Is in the Box

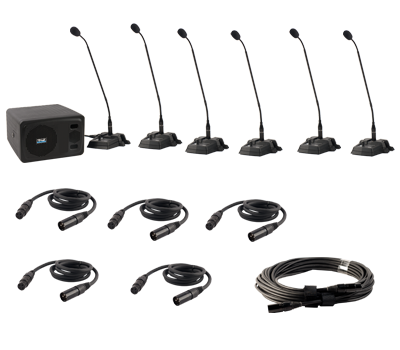

The CM-6 includes one AN-100CM+ speaker monitor, one CHM-100 chairman base with gooseneck microphone, five DEL-100 delegate bases with gooseneck microphones, five EX-4M 4 ft. XLR cables to link the bases, one EX-25M 25 ft. XLR cable to reach the speaker, and a sturdy cardboard carrying case.
Chairman and Delegate Control
Every microphone base has adjustable volume, and the CHM-100 chairman base can mute all delegate microphones to keep the meeting in order.
Easy Setup, Portable or Installed
Each microphone base connects to the next with a standard 3-pin XLR cable, and the speaker powers every base through the chain. The system can travel from the council chamber to a community center, and the speaker has built-in bracket mount screws for permanent installation (bracket sold separately).
Record and Share the Meeting
The AN-100CM+ has a 3.5 mm AUX input and a pre-fader balanced line output on XLR and 1/4-inch jacks for a recorder or house sound system.
Typical Applications
- City council and county board meetings
- School board meetings
- Committee and commission hearings
- Corporate boardrooms
- Panel discussions
Compatible Accessories
Compatible accessories for the Anchor Audio CM-6, available at Affinitech Store:
- Anchor Audio DEL-100 Delegate Microphone (add seats)
- Anchor Audio EX-4M 4 ft. XLR Cable
- Anchor Audio EX-25M 25 ft. XLR Cable
- Anchor Audio EX-50M 50 ft. XLR Cable
- Anchor Audio HC-ARMOR24-CM Rolling Hard Case
- Anchor Audio SS-250 Speaker Stand
- Anchor Audio CC-100XL Extra Large Carrying Bag
- Anchor Audio PC-2 Power Cord
Compare Anchor Audio CouncilMAN Conference Systems
| Model | Key spec | Type | Best for |
|---|---|---|---|
| Anchor Audio AN-100CM+ | 30 W, powers up to 11 conference mics | Powered speaker monitor | Building or expanding a wired CouncilMAN system |
| Anchor Audio AN-100CMU2+ | 30 W, built-in dual 1.9 GHz wireless mic receiver | Powered speaker monitor with wireless | Adding up to two wireless mics |
| Anchor Audio CM-6 (this model) | 1 chairman and 5 delegate mics with AN-100CM+ | 6-user wired package | Council, board and committee meetings |
| Anchor Audio CM-6W | 1 chairman and 5 delegate mics, AN-100CMU2+ and WH-LINK | 6-user package with wireless mic | Meetings with public comment or a roaming presenter |
Explore More
- Anchor Audio CouncilMAN conference systems
- Conference systems
- Microphones
- Audio accessories
- All Anchor Audio products
Frequently Asked Questions About the Anchor Audio CM-6
What is included in the CM-6?
One AN-100CM+ speaker monitor, one CHM-100 chairman microphone, five DEL-100 delegate microphones, five EX-4M 4 ft. XLR cables, one EX-25M 25 ft. XLR cable and a sturdy cardboard carrying case.
How many people can use the CM-6?
It is set up for six users: one chairman and five delegates.
Can I add more microphones?
Yes. The AN-100CM+ powers up to 11 conference microphones, so you can add DEL-100 delegate mics with XLR cables.
Can the chairman mute the delegates?
Yes. The CHM-100 chairman microphone can mute all delegate microphones.
Does the CM-6 include wireless microphones?
No. For a wireless handheld mic choose the CM-6W, which includes the AN-100CMU2+ and a WH-LINK wireless mic.
How large a room can it cover?
Anchor Audio rates the CouncilMAN to reach crowds of 150+.
Can I record meetings with the CM-6?
Yes. The AN-100CM+ has a pre-fader balanced line output on XLR and 1/4-inch jacks.
Is a hard case available?
Yes. The HC-ARMOR24-CM is an Anchor Armor rolling hard case with a retractable handle, wheels and foam inserts for the CouncilMAN system.
Detailed Specifications
Anchor Audio CouncilMAN CM-6 Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | CM-6 |
| Type | 6-user wired conference system package |
| Series | CouncilMAN |
| Package Contents | |
| AN-100CM+ | 1 x AC-powered speaker monitor |
| CHM-100 | 1 x chairman base and gooseneck mic |
| DEL-100 | 5 x delegate base and gooseneck mic |
| EX-4M | 5 x male/female XLR cable, 4 ft. |
| EX-25M | 1 x male/female XLR cable, 25 ft. |
| Case | Sturdy cardboard carrying case |
| Speaker Specifications (AN-100CM+) | |
| Rated power output | 30 W |
| Max SPL at rated power | 103 dB at 1 m |
| Frequency response | 65 Hz to 18 kHz, plus or minus 3 dB |
| Speaker | 4.5-inch woofer and 10 mm dome tweeter |
| Mic input | XLR (powers CHM-100 and DEL-100 bases over the daisy chain) |
| Line input | 3.5 mm AUX |
| Line output | Lo-Z, buffered, XLR and 1/4-inch balanced (pre-fader) |
| Line output level | -20 dBV (100 mVrms) |
| AC power | 110 to 125 VAC |
| Fuse | T 1.0 A / 250 V internal (export model T 0.5 A / 250 V) |
| Enclosure | ABS plastic |
| Dimensions (H x W x D) | 9 x 8.5 x 5.5 in. (23 x 21.6 x 14 cm) |
| Weight | 4.5 lb (2 kg) |
| Microphone Bases (CHM-100 / DEL-100) | |
| Power requirement | +22 VDC at 60 mA from pin 2 of the daisy chain |
| Phantom power to mic | 18 V |
| Output impedance | Greater than 10k |
| Daisy chain connectors | Male and female 3-pin XLR |
| Dimensions (H x W x D) | 6 x 7 x 3 in. (15.2 x 17.8 x 7.7 cm) |
| Weight | 1 lb (0.45 kg) |
| System | |
| Conference microphones | Up to 11 powered by the AN-100CM+ |
| Mic connection | Daisy chain with standard 3-pin XLR cables |
| Chairman control | Chairman microphone can mute all delegate microphones |
| Per-mic control | Adjustable volume on each microphone base |
| Coverage | Reaches crowds of 150+ |
| Mounting | Built-in bracket mount screws (bracket with Allen wrench sold separately) |
| Shipping | |
| Shipping weight | 15 lb |
| Package dimensions | 12 x 12 x 12 in. (W x H x D) |
