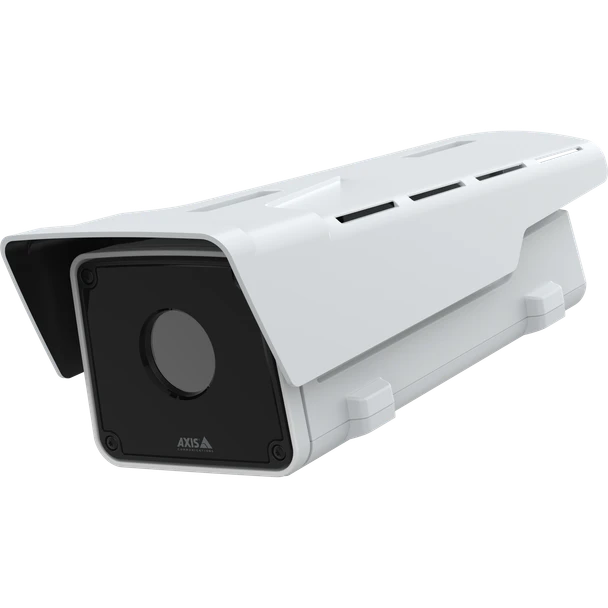

AXIS Q2112-E 640x480 Outdoor Thermal Camera, 19 mm 8.3 fps, 02605-001

AXIS Q2112-E 19 mm 8.3 fps 640x480 Outdoor Thermal Camera

The AXIS Q2112-E 19 mm 8.3 fps (02605-001) is the 8.3 fps version of the AXIS Q2112-E outdoor thermal camera with the 19 mm lens: a 640x480 uncooled microbolometer with NETD below 20 mK and a 31° horizontal field of view. Because it images heat rather than light, it detects people and vehicles 24/7 in darkness, smoke and light fog, with electronic image stabilization and color palettes, AXIS Motion Guard, Fence Guard and Loitering Guard included and AXIS Perimeter Defender supported. Axis Edge Vault, four I/O ports, an RS485/RS422 port and edge-to-edge speaker pairing come standard, and the IP66/IP67, IK10, NEMA 4X and NEMA TS 2-rated casing is built for perimeters, fence lines and total darkness.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS Q2112-E 19 mm 8.3 fps?

• Thermal video at up to 8.3 fps on this part number; the same 19 mm lens is also made as a 30 fps version (02606-001)
• 19 mm athermalized F1.0 lens: 31° horizontal, 24° vertical field of view
• Theoretical person detection up to 559 m (1,834 ft) (Johnson's criteria)
• 640x480 microbolometer, 17 µm pixels, NETD below 20 mK; output scalable to 800x600
• Electronic image stabilization and multiple thermal color palettes
• Preinstalled AXIS Motion Guard, Fence Guard and Loitering Guard; AXIS Perimeter Defender supported
• Axis Edge Vault, TPM 2.0 (FIPS 140-2 Level 2), signed video and secure boot
• IK10, IP66/IP67, NEMA 4X and NEMA TS 2 ratings; PoE Class 4 or 10–28 V DC; guard tours of up to 256 presets on a positioning unit

Detection in Total Darkness

A thermal camera sees heat, not light, so it needs no illumination and is not affected by darkness, glare or low sun, and it keeps working in smoke and light fog. The uncooled microbolometer covers the 8–14 µm spectral range with a sensitivity (NETD) below 20 mK, which keeps the false alarm rate low in low-contrast scenes. Multiple color palettes help operators read the scene, and because thermal images do not allow identification, they suit sites where privacy matters.

19 mm Lens Coverage and Detection Range

The 19 mm athermalized F1.0 lens gives a 31° horizontal and 24° vertical field of view, with a near focus distance of 8.5 m (28 ft). Using Johnson's criteria, AXIS gives theoretical ranges of 559 m (1,834 ft) to detect a person and 1,596 m (5,235 ft) to detect a vehicle, 140 m (460 ft) to recognize a person and 70 m (230 ft) to identify one. Weather affects real distances, so plan the scene with AXIS Site Designer. The AXIS Q2112-E is offered with 10, 19, 25, 35, 60 and 100 mm lenses, each in an 8.3 fps and a 30 fps version.

Built-In Analytics

AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm and audio detection are included. AXIS Perimeter Defender, which detects and classifies humans and vehicles, is supported and sold separately, and the AXIS Camera Application Platform lets you add third-party analytics. The ARTPEC-8 chip includes a deep learning processing unit (DLPU).

Axis Edge Vault Cybersecurity

Axis Edge Vault is a hardware-based cybersecurity platform with TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), a secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot and an encrypted filesystem. Signed firmware, brute force delay protection, OAuth 2.0, IEEE 802.1X, IEEE 802.1AE (MACsec), HTTPS/HSTS, TLS 1.2/1.3 and a host-based firewall protect it on the network. ONVIF Profile G, M, S and T and the VAPIX API support AXIS Camera Station and partner VMS software.

Built for Harsh Outdoor Sites

The aluminum casing weighs 3.3 kg (7.3 lb) and is IP66/IP67, NEMA 4X and IK10 rated, operating from -40 °C to 60 °C (up to 74 °C per NEMA TS 2). Mounting accessories are not included: choose the AXIS TQ1003-E Wall Mount for fixed installs or the AXIS TQ1818-E Positioning Unit for a 360° view with guard tours of up to 256 presets. It has four configurable inputs/outputs (two supervised, two unsupervised) and an RS485/RS422 serial port, mic/line in and line out, and runs on PoE Class 4 or 10–28 V DC.

Typical Applications

• Perimeters and fence lines
• Critical infrastructure, utility and industrial sites
• Long-range detection from a positioning unit
• Storage yards, ports and open ground
• Building exteriors and areas with no lighting
• Sites where privacy rules out visual cameras

Compatible Accessories

AXIS Q21 Series cameras do not include mounting accessories, so choose a mount or positioning unit for the installation.

Compatible accessories for the AXIS Q2112-E, available at Affinitech Store:

• AXIS TQ1818-E Positioning Unit
• AXIS TQ1003-E Wall Mount
• AXIS Surveillance Card 128 GB
• AXIS Surveillance Card 256 GB

Compare AXIS Q21 Thermal Cameras

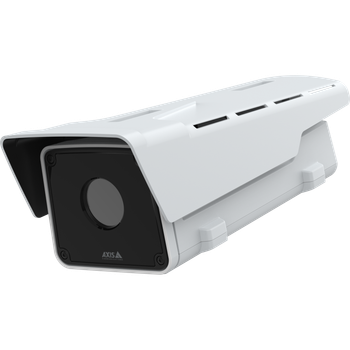

This page is the 8.3 fps version of the AXIS Q2112-E 19 mm; the AXIS Q2112-E versions linked in the table run at up to 30 fps. Need the higher frame rate with the same lens? See the AXIS Q2112-E 19 mm 30 fps (02606-001). 8.3 fps versions of the other lenses are also available; contact us for those part numbers.

Explore More

• Browse the full Thermal Cameras collection at Affinitech Store
• Shop Box Cameras at Affinitech Store
• See all Outdoor Cameras at Affinitech Store
• Explore AI Cameras with onboard analytics at Affinitech Store

Frequently Asked Questions About the AXIS Q2112-E 19 mm 8.3 fps

What thermal resolution does the AXIS Q2112-E 19 mm 8.3 fps have?

640x480 pixels from an uncooled microbolometer with a 17 µm pixel pitch; the video can be scaled up to 800x600.

What is the thermal sensitivity?

NETD below 20 mK at 25 °C, F1.0, over a spectral range of 8–14 µm.

What field of view does the 19 mm lens give?

31° horizontal and 24° vertical, with an athermalized F1.0 lens and a near focus distance of 8.5 m (28 ft).

How far can the 19 mm lens detect a person?

Using Johnson's criteria, AXIS rates this lens at theoretical distances of 559 m (1,834 ft) to detect, 140 m (460 ft) to recognize and 70 m (230 ft) to identify a person, and 1,596 m (5,235 ft) to detect a vehicle. Actual range depends on weather and the scene; AXIS Site Designer helps plan it.

What is the difference between the 8.3 fps and 30 fps versions?

The maximum thermal frame rate. This part number (02605-001) streams at up to 8.3 fps, while the 19 mm 30 fps version (02606-001) streams at up to 30 fps. AXIS covers both in one datasheet with the same sensor, lens and ratings.

Does it work in complete darkness?

Yes. It forms its image from heat, so it needs no visible light or IR illuminator, and it keeps detecting through smoke and light fog.

Which analytics are included?

AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm and audio detection. AXIS Perimeter Defender is supported and sold separately.

How is it powered?

PoE IEEE 802.3af/802.3at Type 2 Class 4 (typical 5.2 W, max 25.5 W), or 10–28 V DC (typical 4.6 W, max 25.5 W).

Is it rated for outdoor use?

Yes. It is IP66/IP67, NEMA 4X and IK10 rated and operates from -40 °C to 60 °C (-40 °F to 140 °F), with a maximum of 74 °C (165 °F) per NEMA TS 2.

Does it support local storage?

Yes. It supports microSD, microSDHC and microSDXC cards with AES-XTS-Plain64 256-bit encryption, plus recording to network-attached storage (NAS).

Is a mount included?

No. AXIS Q21 Series cameras do not include mounting accessories. The AXIS TQ1003-E Wall Mount and AXIS TQ1818-E Positioning Unit are listed as optional accessories.

What warranty does it have?

Five years, under the AXIS warranty.
