AXIS M3945-R RJ45 3.6 mm 2MP Onboard Dome with Audio, 03373-001
Brand: AXIS Communications
- Availability:
- available
Description
AXIS M3945-R RJ45 3.6 mm – 2 MP Onboard Dome Camera with Audio for Buses
The AXIS M3945-R is a rugged 2 MP onboard dome camera for buses with a built-in microphone and support for audio-in. This version has a 3.6 mm, F2.0 lens with a 83° horizontal field of view and an RJ45 connector. It records up to 60 fps for fast-moving events, uses Lightfinder 2.0 and Forensic WDR for difficult light, and runs on a CV75 system-on-chip with a deep learning processing unit (DLPU).
Key Specifications
| Max video resolution | 1920x1080 |
| Max frames per second | 50/60 (without WDR); 25/30 (with WDR) |
| Lens | 3.6 mm, F2.0 |
| Horizontal field of view | 83° |
| Wide dynamic range | Forensic WDR, up to 120 dB |
| Lightfinder | Lightfinder 2.0 |
| Min illumination (color) | 0.16 lux at 50 IRE, F2.0 |
| Audio | Built-in microphone, audio-in |
| Connector | RJ45 |
| PoE class | IEEE 802.3af Type 1 Class 2 |
| IP rating | IP66/IP67 |
| Vandal rating | IK10 |
| Operating temperature | -30 to 55 °C (-22 to 131 °F) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the AXIS M3945-R?
- Built-in microphone and audio-in support
- Up to 60 fps at 1920x1080 for fast-moving events
- 3.6 mm lens with 83° horizontal field of view; exchangeable M12 lenses available
- Lightfinder 2.0 and Forensic WDR for challenging light
- Complies with ECE R10 rev.06, UN ECE R118 and IEC 60721-3-5 Class 5M6
- IP66/IP67, NEMA 4X and IK10 rated
- Axis Edge Vault with FIPS 140-3 Level 3 secure element
- TAA and NDAA 2023 compliant per Axis
Video and Audio Together
A built-in microphone (which can be disabled, with a physical microphone switch) and support for audio-in let you add audio to video evidence, making it easier to understand what happened during an incident. Audio features include automatic gain control and a 10-band graphic equalizer.
Capture Fast-Moving Events
At 1920x1080 the AXIS M3945-R records up to 50/60 fps without WDR, or 25/30 fps with WDR. Lightfinder 2.0 and Forensic WDR (up to 120 dB) deliver color and detail in near darkness and mixed light, and scene profiles (forensic, vivid, traffic overview) help tune the image.
Built for Buses
It complies with ECE R10 rev.06, UN ECE R118 and IEC 60721-3-5 Class 5M6, operates from -30 °C to 55 °C (-22 °F to 131 °F), and is IP66/IP67-, NEMA 4X- and IK10-rated. With the AXIS TP3826-E Housing it can be mounted on the outside of a bus. It shares its form factor, backplate and accessories with other Axis onboard cameras, so it can upgrade existing installations without new holes.
Choose the Right Lens and Connector
The M3945-R comes with a 2.8 mm (99°) or 3.6 mm (83°) lens and an RJ45 or rugged M12 connector. This version is the RJ45 3.6 mm. Optional M12 IR lenses from 2.4 mm (124°) to 8 mm (37°) let you change the field of view.
Built-In Cybersecurity
Axis Edge Vault provides a secure element (CC EAL 6+, FIPS 140-3 Level 3), secure boot, signed OS, signed video and an encrypted filesystem, with IEEE 802.1X, IEEE 802.1AR and HTTPS/TLS for network security.
Typical Applications
- City and school bus interiors
- Forward-facing road views through the windshield
- Trams and transit vehicles (outside mounting with AXIS TP3826-E)
- Incident review with synchronized audio
Compatible Accessories
Compatible accessories for the AXIS M3945-R. Linked items are available at Affinitech Store; contact us for the others:
- AXIS TP3826-E Housing
- AXIS TP3843 Dome Cover Clear
- AXIS TP3844 Top Cover Black
- AXIS Lens M12 2.4 mm F2.1 IR
- AXIS Lens M12 2.8 mm F2.0 IR
- AXIS Lens M12 3.6 mm F2.0 IR
- AXIS Lens M12 6 mm F2.0 IR
- AXIS Lens M12 8 mm F1.6 IR
Compare AXIS Onboard Dome Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| AXIS M3905-R | 1920x1080 | Onboard dome, 3.6 or 2.8 mm lens, RJ45 or M12 | Bus interiors |
| AXIS M3945-R (this camera) | 1920x1080 | Onboard dome with built-in microphone, up to 60 fps | Bus interiors and road-facing views |
| AXIS M3057-PLR Mk II | 2016x2016 | Onboard 360° panoramic (EN50155) | Buses and trains |
Other versions of the AXIS M3945-R: AXIS M3945-R RJ45 2.8 mm (03372-001), AXIS M3945-R M12 2.8 mm (03374-001), AXIS M3945-R M12 3.6 mm (03375-001), AXIS M3945-R RJ45 3.6 mm (10-pack) (03373-021).
Explore More
- Browse the full Dome Cameras collection at Affinitech Store
- See the AXIS M3057-PLR Mk II 360° onboard panoramic camera
Frequently Asked Questions About AXIS M3945-R
What lens does this AXIS M3945-R version have?
A 3.6 mm, F2.0 lens with a 83° horizontal and 44° vertical field of view.
Does it record audio?
Yes. It has a built-in microphone (which can be disabled, with a physical switch) and supports audio-in.
What frame rate does it support?
At 1920x1080, up to 50/60 fps without WDR and 25/30 fps with WDR.
What is the difference between the RJ45 and M12 versions?
The RJ45 version has a 10BASE-T/100BASE-TX connector; the M12 version has a rugged, D-coded female M12 connector with a rotatable coupling nut. Both support PoE.
Which transportation standards does it meet?
ECE R10 rev.06, UN ECE R118 and IEC 60721-3-5 Class 5M6.
Can it be mounted outside a vehicle?
Yes, when used with the AXIS TP3826-E Housing.
Can I change the lens?
Yes. Optional M12 IR lenses are available: 2.4 mm (124°), 2.8 mm (99°), 3.6 mm (83°), 6 mm (49°) and 8 mm (37°).
What ingress and impact ratings does it have?
IP66, IP67, NEMA 4X and IK10.
How is it powered?
Power over Ethernet, IEEE 802.3af Type 1 Class 2; typical 3.55 W, max 4.42 W.
Which analytics are included?
AXIS Tampering Detection and AXIS Video Motion Detection, with support for third-party AXIS Camera Application Platform (ACAP) applications.
Does it support VoIP?
Yes, through the Session Initiation Protocol (SIP), peer-to-peer or via a PBX.
What warranty does it have?
A 5-year Axis warranty.
Detailed Specifications
AXIS M3945-R RJ45 3.6 mm Specifications
| Specification | Details |
|---|---|
| Camera | |
| Variant | AXIS M3945-R RJ45 3.6 mm |
| Image sensor | 1/2.8" progressive scan RGB CMOS, pixel size 2.8 µm |
| Lens | 3.6 mm, F2.0; horizontal field of view 83°, vertical field of view 44°; minimum focus distance 0.3 m (1.0 ft); M12 mount, fixed iris |
| Minimum illumination | Color: 0.16 lux at 50 IRE, F2.0 |
| Shutter speed | 1/31500 s to 1/2 s |
| Camera adjustment | Pan ±30°, tilt 0–90°, rotation -179° to 180° |
| System on Chip (SoC) | |
| Model | CV75 |
| Memory | 2 GB RAM, 8 GB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG |
| Resolution | 16:9: 1920x1080 to 640x360 · 4:3: 1280x960 to 320x240 · 11:9: 704x576 · 5:4: 720x576 |
| Frame rate | 1920x1080 (16:9) at 25/30 fps (with WDR); 1920x1080 (16:9) at 50/60 fps (without WDR) |
| Video streaming | Up to 10 unique and configurable video streams (max 3 recommended); Axis Zipstream in H.264 and H.265; controllable frame rate and bandwidth; VBR/ABR/MBR H.264/H.265; video streaming indicator |
| WDR | Forensic WDR: up to 120 dB depending on scene |
| Noise reduction | Spatial filter (2D noise reduction), temporal filter (3D noise reduction) |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, local contrast, tone mapping, exposure mode, exposure zones, compression, rotation 0°, 90°, 180°, 270° including corridor format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks; scene profiles: forensic, vivid, traffic overview |
| Image processing | Axis Zipstream, Forensic WDR, Lightfinder 2.0 |
| Pan/Tilt/Zoom | Digital PTZ, preset positions, limited guard tour, control queue |
| Audio | |
| Features | Automatic gain control, 10-band graphic equalizer for audio input |
| Input | Built-in microphone (can be disabled), physical microphone switch |
| Built-in microphone specification | Max sound pressure level 128 dB; frequency range 100–10000 Hz |
| Encoding | LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz; configurable bitrate |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); one-click cloud connection; ONVIF® Profile G, M, S and T; Voice over IP (VoIP) through SIP, peer-to-peer (P2P) or Private Branch Exchange (PBX) |
| Video management systems | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, and video management software from Axis’ partners |
| Onscreen controls | Wide dynamic range, privacy masks |
| Event conditions | Application · Audio: physical microphone switch · Call: state, state change · Device status: above/below/within operating temperature, audit logs, IP address blocked/removed, live stream active, network lost, new IP address, system ready · Edge storage: recording ongoing, storage disruption, storage health issues detected · I/O: manual trigger, virtual input is active · MQTT: client connected, stateless · Scheduled and recurring · Video: average bitrate degradation, tampering |
| Event actions | Calls: answer, end, make; LEDs: flash status LED; MQTT publish; notification (HTTP, HTTPS, TCP, email); overlay text; recordings; security: erase configuration; SNMP trap messages; images or video clips (FTP, SFTP, HTTP, HTTPS, network share, email); WDR mode |
| Built-in installation aids | Pixel counter, level grid |
| Analytics | |
| Applications included | AXIS Tampering Detection, AXIS Video Motion Detection |
| Applications supported | AXIS Camera Application Platform (ACAP) third-party applications |
| Approvals | |
| Product markings | BSMI, CE, ECE, FCC, KC, NOM, RCM, UL/cUL, VCCI, WEEE |
| Supply chain | TAA compliant, NDAA 2023 compliant |
| EMC | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06, EN 50498; RCM AS/NZS CISPR 32 Class A; ICES(A)/NMB(A); VCCI Class A; KS C 9835, KS C 9832 Class A; FCC Part 15 Subpart B Class A |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, UL 62368-1 ed. 3, UN ECE R118 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60529 IP66/IP67, IEC 62262 IK10, NEMA 250 Type 4X, IEC 60721-3-5 Class 5M6 |
| Network | NIST SP500-267, IPv6 USGv6 |
| Cybersecurity | ETSI EN 303 645, FIPS 140 |
| Cybersecurity | |
| Edge security | Software: signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) · Hardware: Axis Edge Vault cybersecurity platform; secure keystore: secure element (CC EAL 6+, FIPS 140-3 Level 3), system-on-chip security (TEE); Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit) |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), host-based firewall |
| General | |
| Casing | IP66/67-, NEMA 4X- and IK10-rated; aluminum and plastic casing |
| Mounting | Inside vehicles |
| Power | Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2; typical 3.55 W, max 4.42 W |
| Connectors | RJ45: 10BASE-T/100BASE-TX PoE; all connectors support PoE |
| Storage | microSD/microSDHC/microSDXC card; SD card encryption (AES-XTS-Plain64 256-bit); recording to network-attached storage (NAS) |
| Operating conditions | -30 °C to 55 °C (-22 °F to 131 °F); maximum (intermittent) 70 °C (158 °F); humidity 10–100% RH (condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F); humidity 5–95% RH (non-condensing) |
| Weight | 250 g (0.55 lb) |
| Box content | Camera, installation guide, Windows® decoder 1-user license, lens tool |
| Optional accessories | Lens M12 2.4 mm F2.1 IR (124°), Lens M12 2.8 mm F2.0 IR (99°), Lens M12 3.6 mm F2.0 IR (83°), Lens M12 6 mm F2.0 IR (49°), Lens M12 8 mm F1.6 IR (37°); AXIS TP3826-E Housing, AXIS TP3843 Dome Cover Clear, AXIS TP3844 Top Cover Black |
| DORI (detect / observe / recognize / identify) | 53.3 m (175 ft) / 21.1 m (69 ft) / 10.6 m (35 ft) / 5.3 m (17 ft) (3.6 mm lens) |
| Sustainability | PVC free, BFR/CFR free; RoHS; REACH; renewable carbon-based plastic content 25% |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Warranty | 5-year warranty |
Related Products
Related Products
AXIS M3945-R RJ45 3.6 mm Onboard Dome with Audio (10-Pack), 03373-021
Brand: AXIS Communications
AXIS M3945-R M12 3.6 mm 2MP Onboard Dome with Audio, 03375-001
Brand: AXIS Communications
AXIS M3945-R RJ45 2.8 mm 2MP Onboard Dome with Audio, 03372-001
Brand: AXIS Communications
AXIS M3945-R M12 2.8 mm 2MP Onboard Dome with Audio, 03374-001
Brand: AXIS Communications

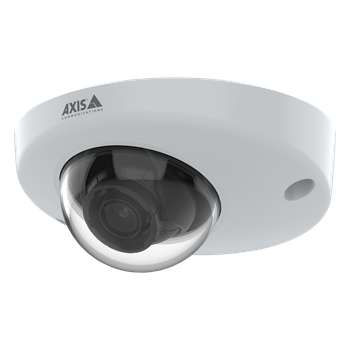

AXIS M3905-R RJ45 3.6 mm 2MP Onboard Dome Camera, 02501-001
