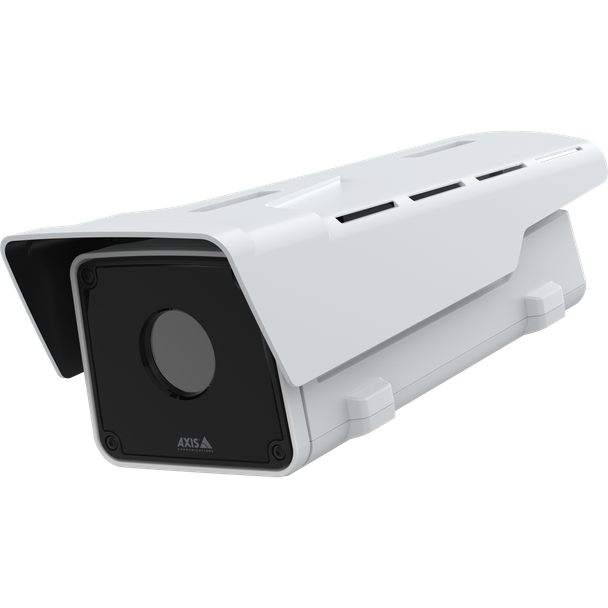

AXIS Q2112-E 10 mm Thermal Network Camera

An outdoor thermal camera that detects and verifies around the clock — in total darkness, through smoke and light fog — using a 640 x 480 uncooled microbolometer and a 10 mm lens giving a 63° x 46° field of view.

Key Features of the AXIS Q2112-E

• High-resolution thermal detection with a low false alarm rate
• 10 mm lens on this part number (02603-001); the Q2112-E family offers 10, 19, 25, 35, 60 and 100 mm options
• Flexible mounting options (mounts sold separately)
• Support for powerful analytics, with three guards preinstalled
• Built-in cybersecurity with Axis Edge Vault

Detection That Does Not Depend on Light

Thermal imaging responds to heat rather than visible light, so the AXIS Q2112-E detects and verifies 24/7 in any lighting condition, and continues working through smoke and light fog. Because a thermal image shows heat signatures rather than identifying detail, it also suits areas where privacy matters.

640 x 480 Thermal Sensor and a 10 mm Lens

An uncooled microbolometer delivers 640 x 480 thermal resolution at up to 800 x 600 video resolution. This part number carries the 10 mm lens, producing a 63° horizontal by 46° vertical field of view at up to 8.3 frames per second — the widest view in the Q2112-E range, suited to area coverage rather than long-range detection. Longer focal lengths for narrower, longer-range views are available under separate part numbers.

High Thermal Sensitivity for Fewer False Alarms

Thermal sensitivity of less than 20 mK at 25 °C (F1.0) lets the camera resolve very small temperature differences, which is what keeps the false alarm rate down in scenes with low contrast. Electronic image stabilization keeps video steady where the camera is subject to vibration or wind, and selectable thermal palettes let operators pick the rendering that reads most clearly for the scene.

Analytics Included, and an Open Platform

AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard come preinstalled for proactive perimeter and area surveillance. AXIS Perimeter Defender, with AI-based functionality, is available separately, and the camera's analytics platform accepts custom third-party applications.

Integration and Edge-to-Edge

Four configurable alarm inputs/outputs and an RS485 serial port allow integration with external equipment, while edge-to-edge technology lets the camera trigger devices such as a network speaker or strobe siren directly. Audio support with audio detection, video motion detection and an active tampering alarm are all built in.

Efficient Video and Local Recording

H.264 in Baseline, Main and High profiles combines with Axis Zipstream to cut bandwidth and storage demand without discarding forensic detail. A memory card slot supports recording at the edge.

Built for Harsh Outdoor Environments

Rated IP66 and IP67 against dust and water, IK10 against impact, and carrying NEMA 4X and NEMA TS2 ratings, the Q2112-E operates from -40 °C to 60 °C. It is made from halogen-free materials.

Axis Edge Vault Cybersecurity

Axis Edge Vault is a hardware-based cybersecurity platform that protects the device and its sensitive information from unauthorized access. It provides a signed operating system and FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

Typical Applications

• Perimeter detection where lighting is absent, unreliable or undesirable
• Critical infrastructure and industrial sites
• Areas where privacy considerations rule out conventional cameras
• Sites requiring reliable detection through smoke or light fog

Mounting Accessories Sold Separately

AXIS Q21 Series cameras do not include mounting accessories, so that the mount can be matched to the installation. A wide range of options is available; mounted on a positioning unit (sold separately) the camera can provide a 360° overview.

Frequently Asked Questions About the AXIS Q2112-E

What does the AXIS Q2112-E detect?

It is a thermal camera, so it detects heat rather than visible light. That allows reliable detection and verification 24/7 in all light conditions, including complete darkness.

What is the thermal resolution of the AXIS Q2112-E?

The uncooled microbolometer sensor provides 640 x 480 thermal resolution, with a maximum video resolution of 800 x 600.

Which lens does part number 02603-001 have?

02603-001 is the 10 mm version, giving a 63° horizontal by 46° vertical field of view. The Q2112-E is also available with 19, 25, 35, 60 and 100 mm lenses under different part numbers.

What frame rate does 02603-001 support?

Up to 8.3 frames per second. A 30 fps version of the 10 mm model is available as a separate part number.

Does the AXIS Q2112-E work in complete darkness?

Yes. Thermal imaging does not require any ambient or infrared illumination, and it also sees through smoke and light fog.

How sensitive is the AXIS Q2112-E?

Thermal sensitivity (NETD) is less than 20 mK at 25 °C, F1.0, which supports a low false alarm rate in low-contrast scenes.

Does the AXIS Q2112-E support Power over Ethernet?

Yes, it is powered over Ethernet at PoE Class 4.

Is the AXIS Q2112-E suitable for outdoor installation?

Yes. It is rated IP66 and IP67, carries NEMA 4X and NEMA TS2 ratings, and operates from -40 °C to 60 °C.

Is the AXIS Q2112-E vandal resistant?

Yes, it is rated IK10 for impact resistance.

Which analytics are included with the AXIS Q2112-E?

AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard are preinstalled. AXIS Perimeter Defender, which adds AI-based functionality, is purchased separately, and third-party analytics can be added.

Can the AXIS Q2112-E record locally?

Yes, it has a memory card slot for local storage at the edge.

Does the AXIS Q2112-E support audio?

Yes, the camera supports audio and includes audio detection.

What inputs and outputs does the AXIS Q2112-E provide?

Four alarm inputs/outputs and one RS485 serial port. Edge-to-edge technology also allows it to trigger devices such as a network speaker or strobe siren.

Does the AXIS Q2112-E include a mounting bracket?

No. AXIS Q21 Series cameras do not include mounting accessories; these are selected and purchased separately to suit the installation.

What video compression does the AXIS Q2112-E use?

H.264 in Baseline, Main and High profiles, with Axis Zipstream to reduce bandwidth and storage.
