AXIS P3285-LVE LPV Kit 2MP Outdoor LPR Dome Camera, 03631-001

AXIS P3285-LVE Kit License Plate Verifier – 2 MP LPR Dome Camera Kit

The AXIS P3285-LVE Kit License Plate Verifier is an all-in-one license plate recognition kit for slow-speed traffic, with AXIS License Plate Verifier preinstalled on a 2 MP outdoor dome. It reads plates and recognizes vehicle type, color, make and model under optimal conditions, and manages allow and block lists directly on the camera for entry and exit control. The camera is IP66-, IP67-, NEMA 4X- and IK10-rated, and open APIs let it integrate with your VMS and access control system.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS P3285-LVE LPV Kit?

• 2 MP resolution (1920x1080) at up to 50/60 fps
• Varifocal, 3.4–9.8 mm, F1.4–2.7 lens with remote zoom and focus, 100°–32° horizontal field of view
• Lightfinder 2.0 and Forensic WDR plus OptimizedIR up to 20 m (66 ft) for day, night and mixed light
• AXIS License Plate Verifier preinstalled, with allow and block lists of up to 10,000 plates each
• Axis Edge Vault hardware-based cybersecurity
• IP66, IP67, NEMA 4X and IK10 rated; operates from -40 °C to 50 °C
• Audio and I/O connectivity, plus portcast support for AXIS T61 Mk II interfaces and the AXIS D6210 sensor
• Single-cable PoE (Class 3)

Purpose-Tuned for License Plates

The kit captures plates at 2–7 m (7–23 ft) on a single lane at vehicle speeds up to 30 km/h (19 mph), mounted up to 2 m (7 ft) high and up to 2 m from the road. A built-in license plate capture assistant tunes video settings to the mounting height, distance and expected speed, and OptimizedIR reaches 20 m (66 ft) or more for reading plates at night.

Access Control at the Edge

Allow, block and custom lists hold up to 10,000 plates each (30,000 in total), and barrier mode can open for everyone, for allowlisted plates only, or for everyone except blocklisted plates. The camera integrates directly with Axis network door controllers and relay modules, and stores up to 1,000 event log entries with plate thumbnails on the camera, or up to 100,000 on an AXIS Surveillance Card.

Vehicle Details Beyond the Plate

AXIS License Plate Verifier reports license plate, make, model, color, country and region, and classifies bikes, cars, SUVs, vans, pick-ups, trucks and buses. It supports 120 makes and 5,000 models, with more added over time.

Built-In Cybersecurity

Axis Edge Vault provides a secure element (CC EAL 6+, FIPS 140-3 Level 3), secure boot, signed OS, signed video and an encrypted filesystem, with IEEE 802.1X and HTTPS/TLS for network security.

Typical Applications

• Gated communities and residential entrances
• Parking garages and lots
• Corporate campus vehicle gates
• Loading docks and service entrances

Compatible Accessories

Compatible accessories for the AXIS P3285-LVE LPV Kit. Linked items are available at Affinitech Store; contact us for the others:

• AXIS T6101 Mk II Audio and I/O Interface
• AXIS T6112 Mk II Audio and I/O Interface
• AXIS D6210 Air Quality Sensor
• AXIS T8415 Wireless Installation Tool
• AXIS TP3103-E Pendant Kit
• AXIS Surveillance Card 256 GB (microSDXC)
• AXIS Surveillance Card 512 GB
• AXIS TP3206-E Recessed Mount

Compare AXIS P32 Dome Cameras

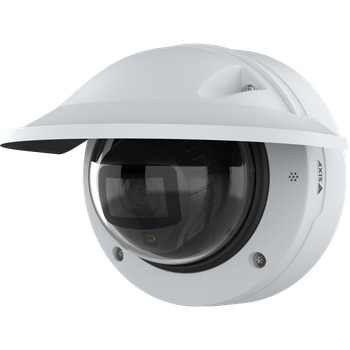

Other versions: AXIS P3285-LVE 10 mm, AXIS P3275-LVE 10 mm.

Explore More

• Browse the full Dome Cameras collection at Affinitech Store
• See more AI-Powered Cameras at Affinitech Store
• Shop Outdoor Cameras at Affinitech Store
• Shop IR Cameras at Affinitech Store

Frequently Asked Questions About AXIS P3285-LVE LPV Kit

What resolution does the AXIS P3285-LVE LPV Kit capture?

Up to 1920x1080 (2 MP) at up to 50/60 fps.

What lens does it have?

Varifocal, 3.4–9.8 mm, F1.4–2.7 with a 100°–32° horizontal and 52°–18° vertical field of view, with remote zoom and focus.

Can it be installed outdoors?

Yes. It is IP66-, IP67-, NEMA 4X- and IK10-rated and operates from -40 °C to 50 °C (-40 °F to 122 °F).

Does it have built-in IR?

Yes. OptimizedIR covers 20 m (66 ft) or more depending on the scene.

What can the license plate kit read?

License plates plus vehicle type, color, make and model, at 2–7 m (7–23 ft) on a single lane at speeds up to 30 km/h (19 mph).

Does it need a server?

No. Plate recognition, allow and block lists, and event logs run on the camera, with open APIs for VMS and access control integration.

How is it powered?

Power over Ethernet (IEEE 802.3af/802.3at Type 1 Class 3), max 10 W, typical 3.4 W.

What is the minimum light sensitivity?

Color: 0.08 lux at 50 IRE, F1.4; B/W: 0.02 lux at 50 IRE, F1.4; 0 lux with IR illumination on.

Does it support local storage?

Yes, microSD/microSDHC/microSDXC cards with encryption, plus recording to network-attached storage (NAS).

Does it support audio?

Yes. It has a 3.5 mm mic/line input and supports two-way audio through edge-to-edge speaker pairing or portcast accessories.

What cybersecurity features are built in?

Axis Edge Vault with a secure element, secure boot, signed OS, signed video and an encrypted filesystem.

What warranty does it have?

A 5-year Axis warranty.
