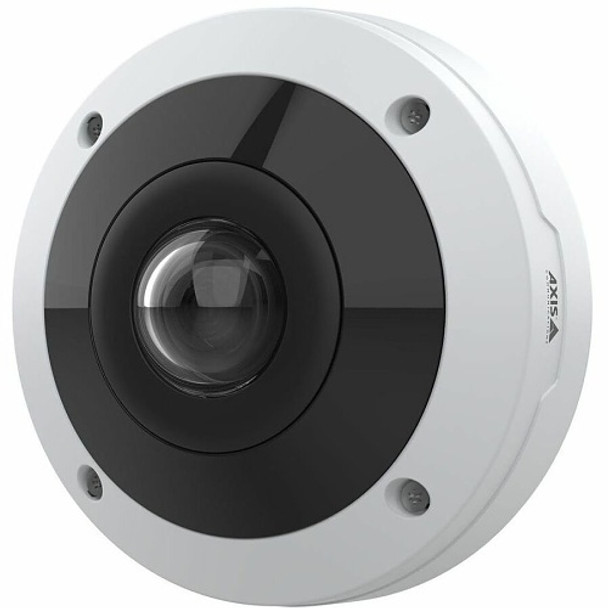

AXIS Communications M4318-PLR Panoramic Network Camera with IR, 02834-001

AXIS M4318-PLR is a discreet, IK10 and IP66 ready dome designed with 6 MP resolution and a stereographic lens. It can deliver multiple 360° or 180° panoramic views at up to 30 fps with no blind spots. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. Built on ARTPEC-8, it offers powerful artificial intelligence and deep learning analytics on the edge. AXIS M4318-PLVE comes with build-in configurable IR, making it perfect for low light situations. Signed firmware and secure boot ensure firmware authenticity. AXIS M4318-PLR as a built-in RJ45 connector.

• Network camera - Helps achieve high-quality video results
• Up to 3840 x 2160 video resolution
• CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos

Product Overview

Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.

360° view with just one camera

Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don't need to invest in several cameras-with AXIS M4318-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there's just one camera to install, one cable to drop, one IP address, onevideo managementsoftware (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.

Outstanding images

With a stereographic lens and Sharpdome 360, AXIS M4318-PLR delivers greater sharpness at the edges of the image. It features a 12 MP sensor and offers great image quality around the clock, regardless of the light conditions.Forensic WDRprovides clarity when there's both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.

Secure and easy

AXIS M4318-PLR offers built-incybersecurityfeatures to help prevent unauthorized access and safeguard your system. For instance, AxisEdge Vaultprotects your Axis device ID and simplifies authorization of Axis devices on your network. AxisZipstreamwith H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with adeep learning processing unit (DLPU), this high-performance cameradelivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Main Features

• Network camera - Helps achieve high-quality video results
• Up to 3840 x 2160 video resolution
• CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
• 1.20 mm maximum focal length provides incredible detail and how effective is your network camera
• f/2.2 maximum aperture for reliable, detailed, and sharp output with added dependability
• Up to 49.21 ft of night vision
• 4K recording format for stunning, vivid video results with maximum efficiency
• Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
• Fixed camera iris effectively compensates for changes in the level of light by adjusting the exposure time or using gain
• Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged

General Information

Name: AXIS 02834-001 Bullet IP Camera, Axis Communications

Category: Axis Communications, Video Surveillance, IP Cameras, Bullet Cameras

UPC Code: 7331021085060

Country of Origin: Mexico. Country of origin is subject to change.

Specifications

General Information

02834001

Brand Name

AXIS

Connectivity Technology

Wired

Manufacturer

Axis Communications

Manufacturer Part Number

02834001

Product Model

M4318-PLR

Product Name

M4318-PLR Panoramic Camera

Product Type

Network Camera

Weight (Approximate) (g)

860

Technical Information

Effective Camera Resolution

12 Megapixel

Field of View

Horizontal field of view: 182° Vertical field of view: 182°

HD Recording

Yes

Lens Type

Fixed

Maximum Aperture

f/2.2

Maximum Focal Length (mm)

1.2

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Camera

Night Vision Distance

49.21 ft

Night Vision Distance (mm)

15000

Display & Graphics

Color Supported

Color

Effective Camera Resolution (Pixel)

12000000

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

122°F (50°C)

Maximum Operating Temperature (°F)

122

Minimum Operating Temperature

-40°F (-40°C)

Minimum Operating Temperature (°F)

-40

Operating Humidity

100%

Exposure

Longest Shutter Speed

1/2 Second

Shortest Shutter Speed

1/8100 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

1.20 mm

Physical Characteristics

Color Family

White

Diameter (mm)

149

Form Factor

Fisheye

Height

2.8"

Height (mm)

70

Weight (Approximate)

1.90 lb

Product Information

Diameter

5.9"

Mount Type

Bracket Mount, Junction Box Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Video

Maximum Frame Rate (fps)

30

Miscellaneous

Features

Audio Compression, Day/Night, HTTPS Encryption, Mirror, Motion Detection, Multi-view Stream, Privacy Masking, Video Management System, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Ingress Protection Rating

IP66

TAA Compliant

Yes
