AXIS Communications M3088-V Mini Dome Network Camera, 02375-001
Description

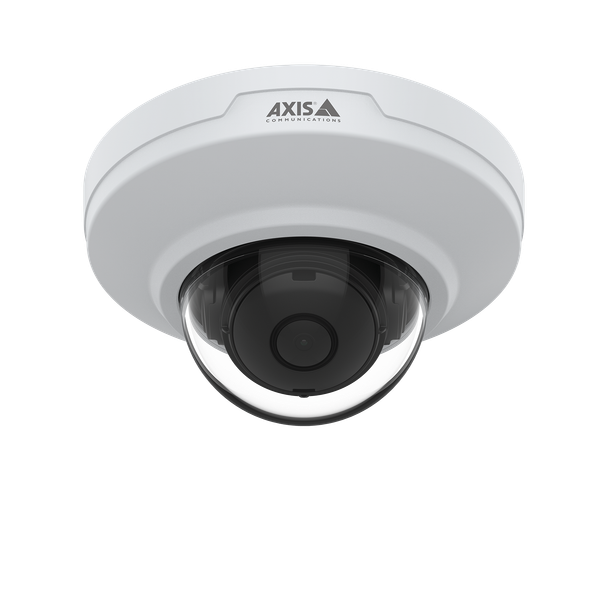

AXIS M3088-V Dome Camera – 8 MP Indoor Mini Dome with Deep Learning
The AXIS M3088-V is an ultra-compact indoor mini dome that delivers full 8 MP detail with an onboard deep learning processing unit for accurate, on-edge analytics. Wide Dynamic Range keeps detail visible in high-contrast scenes, and a factory-focused fixed lens means installation takes minutes, not a ladder session.
Why Choose the AXIS M3088-V?
- Full 8 MP resolution for forensic-grade detail
- WDR for challenging light conditions
- Deep learning processing unit for on-edge analytics
- Factory-focused fixed lens, no manual adjustment
- Compact, vandal-resistant IK08 housing
- ACAP support for third-party applications
- Axis Edge Vault hardware-based cybersecurity
High-Resolution Detail in a Small Housing
The AXIS M3088-V captures up to 3840x2160 (8 MP / 4K) resolution, giving investigators far more pixels to zoom into during forensic review than a 2 MP or 4 MP camera can offer.
Wide Dynamic Range Handles Contrast
WDR maintains detail across a scene with both bright and shadowed areas, useful anywhere windows or overhead lighting create strong contrast.
Deep Learning Analytics Built In
A deep learning processing unit runs AXIS Object Analytics on the camera itself, supporting accurate detection and fast forensic search without additional server hardware, and ACAP support lets you add tailor-made third-party applications.
Compact and Vandal-Resistant
The bayonet-fitted, twist-on casing simplifies mounting, while the IK08-rated housing resists tampering, redirection, and defocusing, and IP42 keeps out dust and drips.
Typical Applications
- High-detail indoor retail and commercial monitoring
- Lobbies and reception areas requiring forensic-grade detail
- Warehouse and distribution center interiors
- Corridors and common areas in office buildings
Technical Specifications
| Specification | Details |
|---|---|
| Camera | |
| Image sensor | CMOS |
| Image sensor size | 1/2.8" |
| Wide dynamic range | WDR |
| Min illumination / light sensitivity (Color) | 0.25 lux |
| Min illumination / light sensitivity (B/W) | 0.05 lux |
| Video | |
| Max video resolution | 3840x2160 |
| Max frames per second | 12/15 |
| Focal length | 2.9 mm |
| Horizontal field of view | 109° |
| Vertical field of view | 56° |
| Compression | |
| Zipstream | Yes |
| H.264 | High, Main |
| H.265 | Yes |
| Audio | |
| Audio support | Yes |
| Network | |
| PoE Class | 2 |
| Security | |
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+) |
| Axis Edge Vault | Yes |
| General | |
| Local storage (memory card slot) | Yes |
| Operating temperature | 0 to 40 °C |
| Vandal rating | IK08 |
| IP rating | IP42 |
| Designed for repaint | Yes |
Frequently Asked Questions About AXIS M3088-V
What resolution does the AXIS M3088-V record at?
Up to 3840x2160 (8 MP / 4K) at 12/15 fps.
Does it include Lightfinder?
No, this model relies on WDR rather than Lightfinder for low-light handling.
What is the field of view?
109° horizontal and 56° vertical from its fixed 2.9 mm lens.
Is it suitable for outdoor use?
No, it's built for indoor installation, rated IP42.
Does it run analytics on the device itself?
Yes, it has an onboard deep learning processing unit running AXIS Object Analytics.
What vandal protection does it offer?
IK08 vandal resistance.
Can I add third-party applications?
Yes, it supports ACAP for tailor-made applications.
What video compression is supported?
H.264 (High, Main), H.265, and Axis Zipstream.
Does it support local recording?
Yes, via a memory card slot for onboard storage.
How is the camera powered?
PoE Class 2 over a single network cable.
What cybersecurity features does it include?
Axis Edge Vault, signed OS, secure boot, and a Secure Element (CC EAL6+) keystore.
Can audio be added?
Yes, audio and I/O connectivity can be added via accessories.
Detailed Specifications
AXIS M3088-V Dome Camera Specifications
| Specification | Details |
|---|---|
| Camera | |
| Image sensor | 1/2.8" progressive scan RGB CMOS |
| Lens | 2.9 mm, F2.0 |
| Horizontal field of view | 109° |
| Vertical field of view | 56° |
| Iris | Fixed iris, IR corrected |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.25 lux at 50 IRE, F2.0 · B/W: 0.05 lux at 50 IRE, F2.0 |
| Shutter speed | 1/71500 s to 1/5 s |
| Camera angle adjustment | Pan ±175°, tilt ±80°, rotation ±175°; can be directed toward any wall or ceiling |
| System on Chip (SoC) | |
| Model | CV25 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (Main, High), H.265 (Main), Motion JPEG |
| Resolution | 3840x2160 (8 MP) down to 320x240 |
| Frame rate | 12/15 fps (50/60 Hz power line frequency) in H.264 and H.265 |
| Video streaming | Multiple, individually configurable H.264/H.265/Motion JPEG streams; Zipstream; VBR/MBR; average bitrate |
| Multi-view streaming | Up to 2 individually cropped view areas at full frame rate |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR up to 120 dB, dynamic overlays, mirroring, privacy mask |
| Rotation | 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio | |
| Audio input/output | Two-way audio via optional accessories using portcast technology |
| Network | |
| Security | IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, user access log, centralized certificate management, signed video, Axis Edge Vault, Axis device ID |
| Network protocols | IPv4, IPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP®, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog |
| System Integration | |
| API | Open API including VAPIX® and AXIS Camera Application Platform; one-click cloud connection; ONVIF® Profile G, M, S, T |
| Event conditions | Device status, edge storage status, I/O triggers, MQTT subscribe, scheduled/recurring, video (bitrate degradation, tampering) |
| Event actions | HTTP/HTTPS/TCP/email notification, record to SD card or network share, MQTT publish, pre/post-alarm buffering, SNMP traps, uploads, external output via portcast accessories |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (cars, buses, trucks, bikes) · Triggers: line crossing, object in area, time in area (beta) · Up to 10 scenarios · Color-coded bounding boxes · Polygon include/exclude areas |
| Metadata | Object data: humans, faces, vehicles, license plates, with confidence and position; event data with producer reference, scenarios, and trigger conditions |
| Applications included | AXIS Object Analytics, AXIS Video Motion Detection |
| Applications supported | AXIS Camera Application Platform (ACAP) third-party apps |
| Cybersecurity | |
| Edge security | Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256-bit SD encryption |
| Hardware security | Secure boot, Axis Edge Vault with Axis device ID, signed video, secure keystore (CC EAL4+ certified) |
| Network security | IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security, X.509 Certificate PKI, IP address filtering |
| General | |
| Casing | IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate/ABS, encapsulated electronics, color white (NCS S 1002-B) |
| Sustainability | 57% recycled plastics, PVC free, BFR/CFR free |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 2; typical 3.6 W, max 4.2 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| Storage | microSD/microSDHC/microSDXC, optional AES-XTS-Plain64 256-bit SD encryption, NAS recording supported |
| Operating conditions | 0 °C to 40 °C (32 °F to 104 °F), humidity 10–85% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F), humidity 5–95% RH (non-condensing) |
| Approvals – EMC | ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 55035, EN 61000-6-1/6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, KS C 9835/9832, RCM AS/NZS CISPR 32 Class A |
| Approvals – Safety | IEC/EN/UL 62368-1, IS 13252 |
| Approvals – Environment | IEC 60068-2 series, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08 |
| Approvals – Network | NIST SP500-267 |
| Dimensions | Height 56 mm (2.2 in), ø 101 mm (4.0 in) |
| Weight | 150 g (0.33 lb) |
| Included accessories | Installation guide, Windows® decoder 1-user license |
| Optional accessories | AXIS TM3812 Tamper Cover, black casing, smoked dome, AXIS Surveillance microSDXC card |
| Video management software | AXIS Companion, AXIS Camera Station, and VMS from Axis Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Japanese, Korean, Portuguese, Simplified Chinese, Traditional Chinese |
| Warranty | 5-year warranty |
