ACTi
ACTi I29 2MP Zoom Box with D/N, Extreme WDR, ELLS, 36x Zoom Lens
(No reviews yet)
Write a Review
- SKU:
- I29
- UPC:
- 888034009561
Frequently bought together:
Description

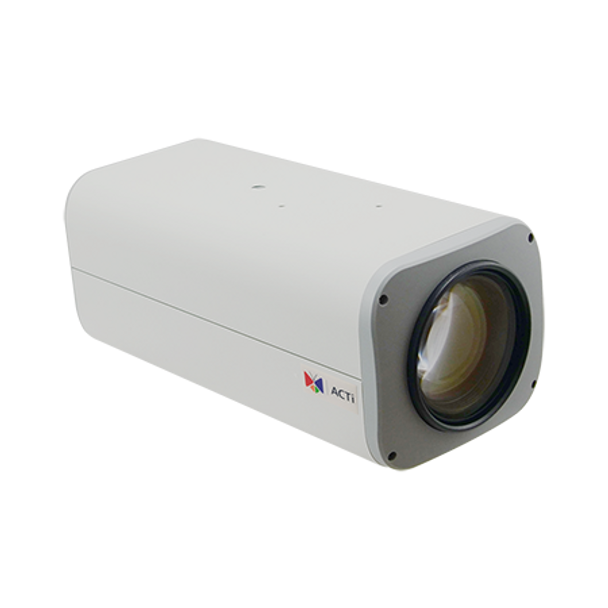

ACTi I29 2MP Zoom Box with D/N, Extreme WDR, ELLS, 36x Zoom Lens
2MP Video Analytics Zoom Box with D/N, Extreme WDR, ELLS, 36x Zoom lens, f4.6-165.6mm/F1.55-5.0 (HOV:62.7°-2.7°), DC iris, Auto Focus, H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, RS-422/RS-485, Built-in Analytics
Device
| Product Type | Zoom Box |
| Maximum Resolution | 2MP |
| Application Environment | Indoor/Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 1945(H) X 1097(V) (2.13 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.002 lux at F1.55; B/W: 0.001 lux at F1.55 |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | No |
| Electronic Shutter | 1/5-1/32000 second (manual mode); 1/5-1/32000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1800 TVL |
| S/N Ratio | 56 dB |
Lens
| Focal Length | Zoom, f4.6-165.6mm |
| Aperture | F1.55-F5.0 |
| Zoom Ratio | 36x optical zoom |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | DC iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 62.7° - 2.7° |
| Vertical Viewing Angle | 38.5° - 1.6° |
PTZ
| Absolute Position | Yes |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P, ACTi URL command |
Video
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080 60 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 |
| High Frame Mode | Support |
| Multi-Streaming | Simultaneous triple streams based on three configurations |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 20 configurable 3D privacy masks |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Built-in Analytics | Basic Face Detection, Object Based Motion Detection, Tampering Detection, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Object Loitering Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| IVS performance | Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Video Analytics
| Analysis Source Type | Video |
| Metadata Accuracy | Standard |
Event
| Event Trigger | Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Intelligent event detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account) |
| Event Response | Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
System
| System Log | Support |
Integration
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)** |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile Q |
| GB28181 Compliant | Yes |
| Web Browser | IE 11, Google Chrome*, Microsoft Edge*, Apple Safari* |
| Auto Firmware Upgrade | Yes |
| SD Card Backup and Recovery | Automatically back up the video recordings from the memory card of camera to NVR 3 server with recovering lost videos after network connection recovery. |
Interface
| Serial Port | 1 x RS-485/RS-422 |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 9.4 W (PoE), 7.5 W (DC) |
| Weight | 781g (1.721lb) |
| Dimensions | (W x H x D): 80.6mm x 71.4mm x 175.84mm (2.93" x 2.81" x 6.92") |
| Environmental Casing | Optional housing (IP66-IP68) |
| Mount Type | Bracket, Wall Mount, Ceiling Bracket |
| Heater | Yes |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) within 30 minutes |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CE Class B, FCC Class B, EAC, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * cross-browser compatibility: Not available for H.265 video decoding ** Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
