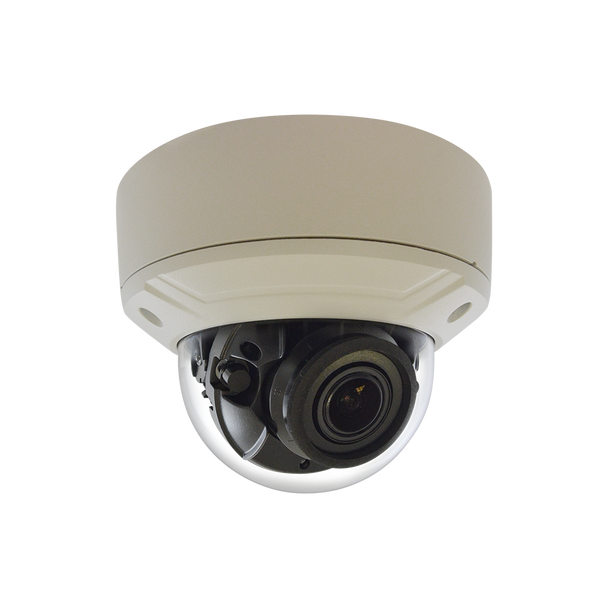

ACTi A818 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens

(No reviews yet) Write a Review
SKU:
A818
UPC:
888034013063
  • ACTi A818 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens
  • ACTi A818 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens
  • ACTi A818 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens
MSRP: $959.00
Price: $863.10
— You save $95.90
Frequently bought together:
Add all to cart

Description

ACTi A818 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom Lens

6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm/F1.6 (HOV:82.2°-28.7°), Auto Focus (for installation), H.265/H.264, 1440p/30fps, 3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, DI/DO

Device


Product Type Zoom Dome
Maximum Resolution 6MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.01 lux; B/W: 0 lux (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED IR LED x 2 (850 nm)
IR Working Distance 85m (1.0 lux)
Electronic Shutter 1/30-1/100000 second (auto mode)
S/N Ratio 52 dB

Lens


Focal Length Zoom, f2.7-13.5mm
Aperture F1.6
Zoom Ratio 5x optical zoom
Zoom Application Camera Installation
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 82.2° - 28.7°
Vertical Viewing Angle 54.5° - 19°
Viewing Angle Adjustment Pan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355°

Video


Compression H.265, H.264 (Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 20 fps at 3072 x 2048
20 fps at 2592 x 1944
25 fps at 2688 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous quad streams
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (150 dB)
Image Enhancement White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
Built-in Analytics Tampering Detection, Face Detection, Object Line Crossing Detection, Object Enter Area Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation (Corridor mode)

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (10 included and excluded polygons regions), External device through digital input, Intelligent event detection, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

System


System Log Support

Integration


Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
Edge Recording Support (integration with NVR by ONVIF Profile G or proprietary protocol)**
ONVIF Compliant Yes, Profile S, Profile G, Profile T
GB28181 Compliant Yes
Web Browser IE 11, Google Chrome*, Microsoft Edge*, Apple Safari*
Auto Firmware Upgrade Yes

Interface


Audio Interface Terminal block
Analog Video Output 1 x CVBS, BNC connector, for installation only
Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output 1/1 (Terminal block)
Operating Button Reset Button

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 12 W (PoE), 10 W (DC)
Weight 1046g (2.306lb)
Dimensions (Ø x H): 141mm x 99.5mm (5.55" x 3.9")
Environmental Casing Weatherproof (IP68), Vandal proof (IK10)
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity 10% - 95% RH
Approvals CE Class B, FCC Class B, EAC, BIS, IP68, NEMA 4X, IK10, CNS 16120 (TAICS, TCA) Level 1
Real-time Clock (RTC) Yes
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * cross-browser compatibility: Not available for H.265 video decoding
** Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
