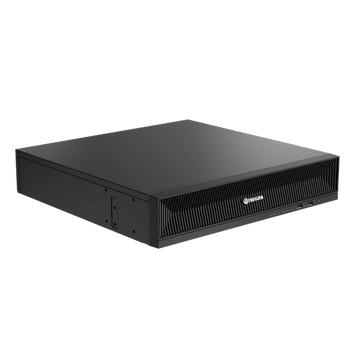

Hanwha Vision XRN-3220B2-8TB 32-Channel AI NVR with 8TB Storage
Description
The Hanwha Vision XRN-3220B2 is a high-performance enterprise-grade network video recorder engineered for advanced IP surveillance deployments requiring powerful recording capabilities, AI-driven search, and scalable storage. Pre-configured with 8TB of surveillance-optimized storage, this 32-channel NVR delivers reliable video management for commercial, industrial, education, healthcare, and critical infrastructure environments.
Powered by a 12th Generation Intel® processor, the XRN-3220B2 supports up to 32MP camera resolution and provides up to 520Mbps recording throughput for demanding multi-camera deployments. The system is optimized for Hanwha Vision Wisenet cameras and supports advanced AI search capabilities when paired with compatible AI cameras.
Key Features
- 32-Channel Recording: Supports up to 32 IP cameras simultaneously
- 8TB Surveillance Storage: Pre-installed enterprise-grade HDD for reliable recording
- High Throughput: Up to 520Mbps recording and transmission bandwidth
- AI Search Support: Compatible with Hanwha AI cameras for object attribute search
- Dual HDMI Outputs: Supports 4K and Full HD simultaneous display outputs
- Cybersecurity Built-In: TPM integrated, signed firmware, TLS encryption, and NDAA compliant
- Advanced Video Compression: H.265, H.264, and MJPEG support
- Scalable Storage: Supports up to 80TB total capacity across 8 HDD bays
Enterprise Video Management Performance
Designed for large-scale surveillance systems, the XRN-3220B2 provides exceptional recording reliability and playback performance. The NVR supports simultaneous live view and playback with advanced features such as dynamic layouts, virtual channel view, event-based recording, and failover redundancy.
With support for Wisenet Viewer, Wisenet Mobile, and web-based management for up to 100 devices, operators gain centralized visibility and simplified system administration across distributed surveillance networks.
AI-Powered Surveillance & Cybersecurity
When paired with Hanwha Vision AI cameras, the XRN-3220B2 enables advanced object attribute searches for rapid forensic investigations. Built-in cybersecurity protections including TPM support, signed firmware, TLS encryption, and certificate authentication help safeguard sensitive video data and network infrastructure.
Technical Specifications
| Category | Specification |
|---|---|
| Model | XRN-3220B2 |
| Storage Included | 8TB Surveillance HDD |
| Channels | 32 IP Camera Channels |
| Maximum Resolution | 32MP |
| Recording Bandwidth | Up to 520Mbps |
| Compression Formats | H.265, H.264, MJPEG |
| Processor | 12th Generation Intel® Processor |
| Operating System | Embedded Linux |
| Storage | |
| HDD Bays | 8 SATA Bays |
| Maximum Storage Capacity | Up to 80TB |
| External Storage | iSCSI Support |
| Display Outputs | |
| HDMI Outputs | 2 HDMI Outputs |
| HDMI Resolution | HDMI1: 3840x2160 (4K), HDMI2: 1920x1080 |
| Network | |
| Ethernet Ports | 3 x RJ-45 (1Gbps) |
| Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Protocols | IPv4/IPv6, ONVIF, HTTPS, SNMP, RTSP, SUNAPI |
| Cybersecurity | |
| Security Features | TPM, TLS Encryption, Signed Firmware, NDAA Compliant |
| Interfaces | |
| USB Ports | 4 USB Ports |
| Alarm Inputs / Outputs | 8 In / 4 Out |
| Audio | 2-Way Audio Support |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Humidity | 20% to 85% RH |
| Physical | |
| Dimensions | 438 x 86 x 434.9 mm |
| Weight | 7.3kg (without HDDs) |
| Material | Black Metal Chassis |
Detailed Specifications
Technical Specifications
| Category | Specification |
|---|---|
| Model | XRN-3220B2 |
| Storage Included | 8TB Surveillance HDD |
| Channels | 32 IP Camera Channels |
| Maximum Resolution | 32MP |
| Recording Bandwidth | Up to 520Mbps |
| Compression Formats | H.265, H.264, MJPEG |
| Processor | 12th Generation Intel® Processor |
| Operating System | Embedded Linux |
| Storage | |
| HDD Bays | 8 SATA Bays |
| Maximum Storage Capacity | Up to 80TB |
| External Storage | iSCSI Support |
| Display Outputs | |
| HDMI Outputs | 2 HDMI Outputs |
| HDMI Resolution | HDMI1: 3840x2160 (4K), HDMI2: 1920x1080 |
| Network | |
| Ethernet Ports | 3 x RJ-45 (1Gbps) |
| Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Protocols | IPv4/IPv6, ONVIF, HTTPS, SNMP, RTSP, SUNAPI |
| Cybersecurity | |
| Security Features | TPM, TLS Encryption, Signed Firmware, NDAA Compliant |
| Interfaces | |
| USB Ports | 4 USB Ports |
| Alarm Inputs / Outputs | 8 In / 4 Out |
| Audio | 2-Way Audio Support |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Humidity | 20% to 85% RH |
| Physical | |
| Dimensions | 438 x 86 x 434.9 mm |
| Weight | 7.3kg (without HDDs) |
| Material | Black Metal Chassis |
