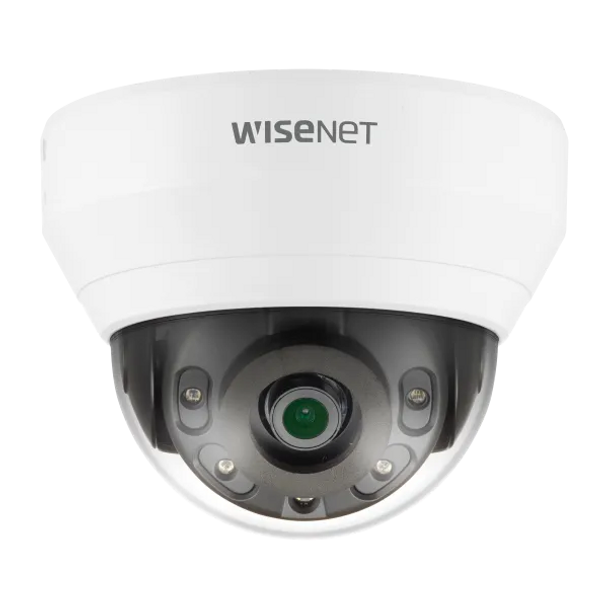

Hanwha Techwin 2MP IR Indoor Dome, QND-6012R1

Video

Imaging Device

1/2.8" 2MP CMOS

Resolution

1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360

Max. Framerate

H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)

NETD

None

Pixel Size

None

Min. Illumination

Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

Video Transmission Distance

None

Lens

Focal Length (Zoom Ratio)

2.8mm fixed focal

Max. Aperture Ratio

F2.0

Angular Field of View

H: 113.7° / V: 61.5° / D: 134.5°

Min. Object Distance

0.5m (1.64ft)

Focus Control

Fixed

Lens Type

None

Mount Type

None

Optional Lens

None

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

0°~350° / 0°~67° / 0°~355°

Pan Range

None

Pan Speed

None

Tilt Range

None

Tilt Speed

None

Rotate Range

None

Sequence

None

Preset Accuracy

None

Operational

Camera Title

Displayed up to 85 characters

Direction Indicator

None

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNR

Digital Image Stabilization

None

Defog

None

Motion Detection

4ea, polygonal zones

Privacy Masking

6ea, rectangular zones

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

Support

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (1/5~1/12,000sec)

Digital PTZ

None

Video Rotation

Flip, Mirror, Hallway view(90˚/270˚)

Analytics

Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line

Business Intelligence

None

Serial Interface

None

Alarm I/O

Input 1ea / Output 1ea

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output

Audio In

None

Audio Out

None

IR Viewable Length

20m(65.62ft)

IR Illuminator (Optional)

None

Water Removal

None

Auto Tracking

None

Coaxial Protocol

None

Color Palettes

None

Radiometry

Temperature Detect Range

None

Temperature Accuracy

None

Temperature Detection

None

Additional

None

Network

Ethernet

RJ-45(10/100BASE-T)

Video Compression

H.265/H.264: Main/High, MJPEG

Audio Compression

None

Smart Codec

WiseStreamⅡ

Video Quality Adjustment

H.264/H.265: Target bitrate level control MJPEG: Quality Level control

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP

Security

HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch

Web Viewer

None

Edge Storage

Micro SD/SDHC/SDXC 1slot 128GB

Memory

512MB RAM, 256MB Flash

Environmental & Electrical

Operating Temperature / Humidity

-10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH

Storage Temperature / Humidity

-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH

Certification

None

Input Voltage

PoE(IEEE802.3af, Class3), 12VDC

Power Consumption

PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W

Mechanical

Color / Material

White / Plastic

RAL Code

RAL9003

Product Dimensions / Weight

Ø110.0x86.0mm(Ø4.33x3.39"), 255g(0.56 Ib)

Compatible Conduit hole / Gangbox

None

Hanging Mount (Dome)

None

Skin Cover (Dome)

None

Weather Cap (Dome)

None

Power Module

None

Backbox

None

DORI (EN62676-4 standard)

Detect (25PPM/ 8PPF)

25.1m(82.21ft)

Observe (63PPM/ 19PPF)

10.0m(32.89ft)

Recognize (125PPM/ 38PPF)

5.0m(16.44ft)

Identify (250PPM/ 76PPF)

2.5m(8.22ft)
