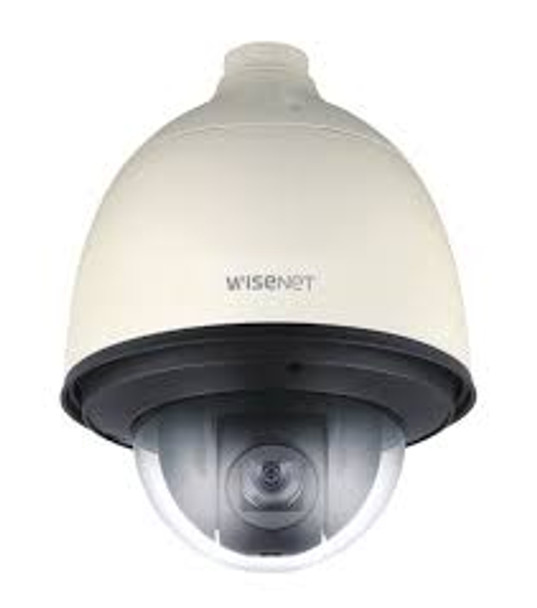

Hanwha Vision XNP-6321H 2MP Outdoor PTZ Camera
Description
Hanwha Vision XNP-6321H – 2MP Outdoor PTZ
The Hanwha Vision XNP-6321H is a 2MP outdoor PTZ camera built for campuses, parking lots and large open areas. It offers 1920x1080 (2MP) video at up to 60 fps, a 4.4 to 142.6mm lens with a 61.8° horizontal view and 32x optical zoom. It is rated IP66, IK10.
Key Specifications
| Max video resolution | 1920x1080 (2MP) |
| Max frames per second | 60 fps |
| Image sensor | 2.4 MP 1/2.8" CMOS |
| Focal length / lens | 4.4 to 142.6mm |
| Optical zoom | 32x |
| Horizontal field of view | 61.8° |
| Min illumination (color) | 0.05 lux |
| Power | AC, PoE 802.3at (30 W) |
| IP / vandal rating | IP66, IK10 |
| Operating temperature | -58 to 131°F / -50 to 55°C |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision XNP-6321H?
- 1920x1080 (2MP) video at up to 60 fps
- 4.4 to 142.6mm lens and a 61.8° horizontal view
- 32x optical zoom
- Color video down to 0.05 lux
- IP66, IK10 rated housing
- Power: AC, PoE 802.3at (30 W)
Clear Video Day and Night
The XNP-6321H captures color video down to 0.05 lux.
Coverage and Resolution
For the XNP-6321H: a 4.4 to 142.6mm lens covers a 61.8° horizontal field of view; 32x optical zoom; resolution is up to 1920x1080 (2MP) at 60 fps.
Analytics and Events
Onboard analytics and event features include Tampering, Loitering, Directional Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis) Appear, Audio Detection.
Built-In Cybersecurity
Security features include Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log.
Installation and Integration
Key installation details: power input: AC, PoE 802.3at (30 W); operating temperature: -58 to 131°F / -50 to 55°C; ratings: IP66, IK10; edge storage: Single Slot: SD/SDHC/SDXC [512 GB Maximum]; compression: H.264, H.265, MJPEG.
Typical Applications
- Campuses and large open areas
- Parking lots
- Perimeter patrol
- Industrial sites and yards
Compare Hanwha Vision X Series PTZ Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Hanwha Vision XNP-6320HS | 2MP | Outdoor PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-6320RH | 2MP | Outdoor IR PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-6321 | 2MP | Indoor PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-6321H (this camera) | 2MP | Outdoor PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-6400RW | 2MP | Outdoor IR PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-8250 | 6MP | Outdoor PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-8250R | 6MP | Outdoor IR PTZ camera | Campuses, parking lots and large open areas |
| Hanwha Vision XNP-8300RW | 6MP | Outdoor IR PTZ camera | Campuses, parking lots and large open areas |
Explore More
- Browse PTZ Cameras at Affinitech Store
- Browse Outdoor Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision XNP-6321H
What resolution does the Hanwha Vision XNP-6321H capture?
Up to 1920x1080 (2MP) at 60 fps.
What lens does it use?
4.4 to 142.6mm; horizontal field of view 61.8°.
How much optical zoom does it have?
32x optical zoom.
How does it perform in low light?
Minimum illumination is 0.05 lux (color).
Can it be installed outdoors?
Yes. It is rated IP66, IK10 and operates from -58 to 131°F / -50 to 55°C.
How is it powered?
AC, PoE 802.3at (30 W).
What video compression does it support?
H.264, H.265, MJPEG.
Does it support onboard storage?
Yes: Single Slot: SD/SDHC/SDXC [512 GB Maximum].
What cybersecurity features are built in?
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log.
What analytics are supported?
Tampering, Loitering, Directional Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis) Appear, Audio Detection.
What are the dimensions and weight of the Hanwha Vision XNP-6321H?
Dimensions: ø223.5x294.6 mm (ø8.8x11.6 in). Weight: 7.3 lb.
Detailed Specifications
Hanwha Vision XNP-6321H Specifications
| Specification | Details |
|---|---|
| Camera | |
| Sensor | 2.4 MP 1/2.8" CMOS |
| Focal Length | 4.4 to 142.6mm |
| Maximum Aperture | f/1.6 to 4.4 |
| Zoom | Optical: 32x |
| Lens Field of View | Horizontal: 61.8°; Vertical: 36.2° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.05 Lux; B&W: 0.005 Lux |
| Video | |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | Yes |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | No |
| External Audio Input | 3.5 mm |
| External Audio Output | 3.5 mm |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | SUNAPI 2.0 (HTTP API) |
| Analytics | Tampering, Loitering, Directional Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis) Appear, Audio Detection, Face Detection, Motion Detection, Sound Classification |
| Event Trigger | No |
| Event Action | Alarm |
| System Requirements | |
| Windows OS Support | Windows 7, 8.1, 10 |
| Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 |
| Environmental | |
| Operating Temperature | -58 to 131°F / -50 to 55°C |
| Operating Humidity | 90% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [512 GB Maximum] |
| Pan/Tilt | Manual Pan: 360°; Manual Tilt: 210° |
| Alarm I/O | 4 / 2 |
| I/O Connections | 1 x RJ45; 1 x Power |
| Video Management Software | Wisenet WAVE, SmartViewer, SSM |
| Supported Languages | Czech; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Polish; Portuguese; Russian; Spanish; Swedish; Traditional Chinese; Turkish |
| Internal Storage | None |
| Power Source | AC, PoE 802.3at (30 W) |
| Power Consumption | 24 W; 65 W (With Heater) |
| Material of Construction | Plastic, Metal (Unspecified Type) |
| Product Dimensions | ø223.5x294.6 mm (ø8.8x11.6 in) |
| Product Weight | 7.3 lb |
| Packaging Info | |
| Package Weight | 11.53 lb |
| Box Dimensions (LxWxH) | 19 x 16.5 x 15.3" |
