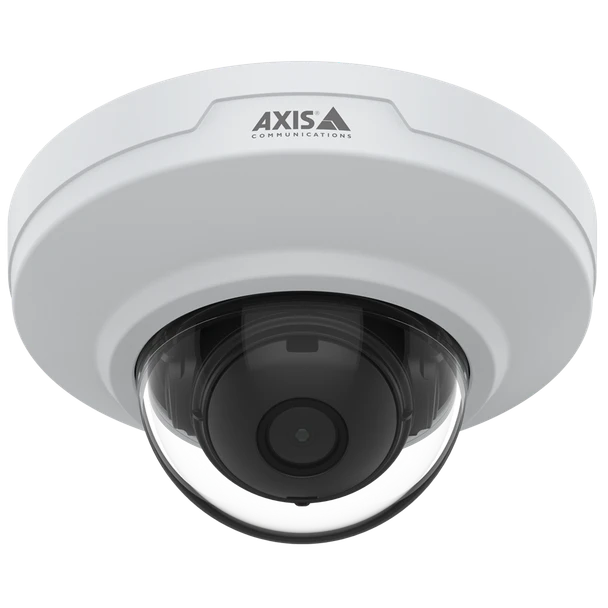

AXIS M3085-V Dome Camera – 2MP Indoor Fixed Mini Dome with Deep Learning, 02373-001
Description
AXIS M3085-V Dome Camera – 2MP Indoor IP Camera with Deep Learning Analytics
The AXIS M3085-V Dome Camera is a 2MP Full HD indoor IP camera designed for professional surveillance. It features Lightfinder low-light technology, Forensic WDR for high-contrast scenes, deep learning analytics at the edge, Zipstream compression for reduced storage usage, PoE installation, and Axis Edge Vault cybersecurity. This compact mini dome is ideal for retail stores, offices, healthcare facilities, financial institutions, and commercial buildings.
Why Choose the AXIS M3085-V?
- 1920 × 1080 Full HD resolution at up to 30 fps
- Lightfinder for superior low-light color performance
- Forensic WDR for challenging lighting environments
- Deep learning analytics on the edge (DLPU)
- H.264 / H.265 with Zipstream bandwidth optimization
- Axis Edge Vault hardware-based cybersecurity
- PoE for simplified installation
- IK08 vandal-resistant indoor dome
Full HD Image Quality with Lightfinder & Forensic WDR
The AXIS M3085-V uses a 1/2.9” progressive scan CMOS sensor to deliver crisp 2MP video. Lightfinder technology enables color video in low-light conditions, while Forensic WDR preserves detail in scenes with bright highlights and dark shadows — ideal for entrances, retail aisles, and office lobbies.
Deep Learning Analytics at the Edge
Built-in deep learning processing allows the camera to detect and classify objects directly on the device. This reduces server dependency, improves event response time, and enhances forensic search efficiency without additional hardware investments.
Cybersecurity Built In
Axis Edge Vault protects the device with secure boot, signed firmware, and hardware-based cryptographic security. This ensures device integrity and protects sensitive video data from unauthorized access.
Technical Specifications
| AXIS M3085-V Dome Camera Specifications | |
|---|---|
| Image Sensor | 1/2.9" Progressive Scan RGB CMOS |
| Maximum Resolution | 1920 × 1080 (2MP) |
| Lens | 3.1 mm, F2.0 | H: 102° | V: 55° |
| Minimum Illumination | 0.18 lux (color) / 0.03 lux (B/W) |
| Wide Dynamic Range | Forensic WDR |
| Video Compression | H.264, H.265, Motion JPEG with Zipstream |
| Frame Rate | Up to 25/30 fps |
| Analytics | Deep Learning Processing Unit (DLPU) |
| Local Storage | microSD/microSDHC/microSDXC |
| Network | 10/100Base-T Ethernet, IPv4/IPv6 |
| Power | PoE IEEE 802.3af/at |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Impact Protection | IK08 |
| Indoor Rating | IP42 |
| Cybersecurity | Signed OS, Secure Boot, Axis Edge Vault |
Frequently Asked Questions
What is the AXIS M3085-V used for?
The AXIS M3085-V is used for indoor video surveillance in retail stores, offices, healthcare facilities, and commercial buildings requiring high-quality 2MP video and edge analytics.
Does the AXIS M3085-V support Power over Ethernet?
Yes. The camera supports PoE (IEEE 802.3af/at), allowing power and data transmission over a single Ethernet cable.
Does it support onboard storage?
Yes. It includes a microSD card slot for local edge recording.
Detailed Specifications
| AXIS M3085-V Dome Camera Specifications | |
|---|---|
| Image Sensor | 1/2.9″ progressive scan RGB CMOS |
| Resolution | 1920 × 1080 (2 MP) Full HD |
| Lens | 3.1 mm, F2.0 | H: 102° | V: 55° |
| Light Sensitivity | 0.18 lux (color) / 0.03 lux (B/W) with Lightfinder |
| Wide Dynamic Range | WDR up to ~120 dB |
| Video Compression | H.264 (Main & High), H.265, Motion JPEG with Zipstream |
| Frame Rate | Up to 25/30 fps |
| Deep Learning | On-edge analytics (DLPU) |
| Network | PoE IEEE 802.3af/at | IPv4/IPv6 |
| Security | Signed OS, Secure Boot, Axis Edge Vault |
| Local Storage | microSD/microSDHC/microSDXC support |
| Operating Temp | 0 °C to 45 °C |
| Ingress Protection | IP42 (indoor) |
| Vandal Resistance | IK08 |
| Certifications | CE, FCC, RCM, RoHS |
