AXIS T94X01A Wall Mount for T92F10 Housing (6-Pack), 5801-541
Description
AXIS T94X01A Wall Mount (6-Pack)

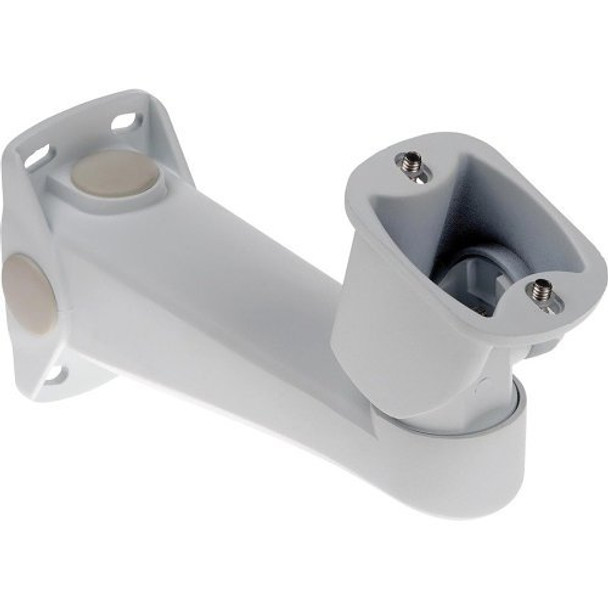

The AXIS T94X01A Wall Mount 6-Pack contains six powder-coated aluminum wall mounts for the AXIS T92F10 Outdoor Housing and AXIS TM1804-LE Housing. Each mount holds up to 15 kg (33 lb), pans 360° and tilts 90°, and lets cables enter through the back, the sides or the top. The mounts work indoors and outdoors and protect against water and dust. Add the AXIS T94Y01G Pole Mount 6-Pack for pole installs.
Key Specifications
| Part number | 5801-541 |
| Pack quantity | 6 wall mounts |
| Type | Housing wall mount |
| Compatible with | AXIS T92F10 Outdoor Housing, AXIS TM1804-LE Housing |
| Material / color | Powder-coated aluminum, white NCS S 1002-B |
| Dimensions (each) | 255 x 179 x 80 mm (10 x 7 x 3 in) |
| Weight (each) | 1.2 kg (2.6 lb) |
| Maximum load (each) | 15 kg (33 lb) |
| Adjustment | Pan 360°, tilt 90° |
| Warranty | 3-year Axis warranty |
Full specifications are listed in the Detailed Specifications tab.
Compatible Products
Compatible AXIS products available at Affinitech Store:
- AXIS TM1804-LE Housing (6-pack)
- AXIS T92F10 Outdoor Housing (6-pack)
- AXIS T94Y01G Pole Mount (6-pack)
Axis lists the AXIS T92F10 Outdoor Housing as discontinued; the AXIS TM1804-LE is the current housing.
Related Products
Related AXIS accessories, available at Affinitech Store:
- AXIS T94Y01G Pole Mount 6-Pack
- AXIS TM1804-LE Housing 6-Pack
- AXIS T94R01B Corner Bracket
- AXIS T94Q01F Ceiling-and-Column Mount
Explore More
- Browse all Housings & Mounts at Affinitech Store
- See every Network Camera Accessory we carry
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS T94X01A
What is in the AXIS T94X01A 6-Pack?
Six AXIS T94X01A powder-coated aluminum wall mounts, part number 5801-541.
Which housings does it fit?
The AXIS T92F10 Outdoor Housing and the AXIS TM1804-LE Housing.
How much weight can each mount hold?
Up to 15 kg (33 lb). Each mount weighs 1.2 kg (2.6 lb).
How are cables routed?
Through the main back hole, from either side, or from the top of the mount.
Can it be used on a pole?
Yes, with the AXIS T94Y01G Pole Mount, also sold as a 6-pack.
Detailed Specifications
AXIS T94X01A Specifications
| Specification | Details |
|---|---|
| Package | |
| Quantity | 6 wall mounts |
| Part number | 5801-541 |
| General | |
| Supported products | AXIS T92F10 Outdoor Housing; axis.com also lists AXIS TM1804-LE Housing |
| Casing material | Powder-coated aluminum |
| Color | White NCS S 1002-B |
| Angle | Pan: 360°; tilt: 90° |
| Cable routing | Back, side, top |
| Environment | Indoor, outdoor |
| Dimensions and Weight (per mount) | |
| Dimensions | 255 x 179 x 80 mm (10 x 7 x 3 in) |
| Weight | 1.2 kg (2.6 lb) |
| Maximum load | 15 kg (33 lb) |
| Approvals | |
| Standards | EN 50581, IEC/EN 60950-1, IEC/EN 60950-22 |
| Accessories | |
| Included accessories | Installation guide |
| Optional accessories | AXIS T94Y01G Pole Mount |
| Warranty | |
| Warranty | 3-year warranty |
