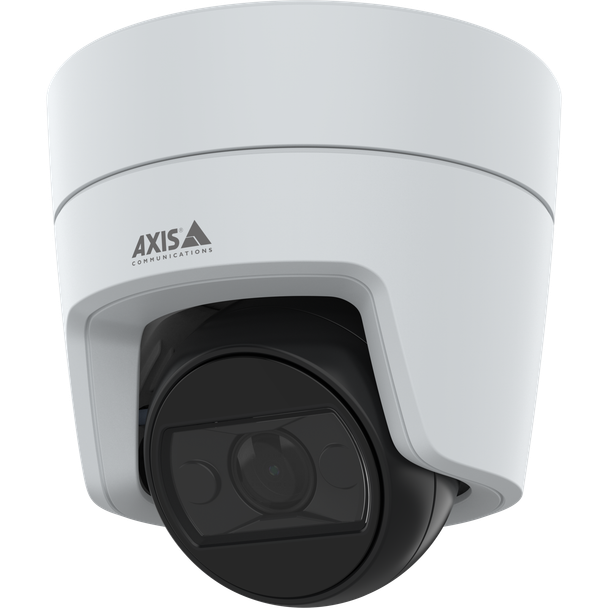

AXIS M3138-LVE 8MP AI Turret Camera with IR and Audio Analytics, 03462-001
Brand: AXIS Communications
- Availability:
- available
Description
AXIS M3138-LVE Turret Camera – 8 MP AI Turret with OptimizedIR and Audio Analytics
The AXIS M3138-LVE is a 4K AI turret with a wide 126° field of view, built-in OptimizedIR, and an acoustic sensor that runs AXIS Audio Analytics alongside AXIS Object Analytics. Forensic WDR and Lightfinder 2.0 keep detail in difficult light, Axis Edge Vault protects the device, and the IP66/IK08-rated white casing installs indoors or outdoors and is designed to be repainted.
Key Specifications
| Max video resolution | 3840x2160 |
| Max frames per second | 12.5/15 (8 MP); 25/30 (4 MP mode) |
| Focal length | 3.7 mm |
| Horizontal field of view | 126° |
| Built-in IR | OptimizedIR, 20 m (66 ft) or more depending on scene |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Min illumination (Color) | 0.18 lux |
| Audio analytics | Integrated acoustic sensor, AXIS Audio Analytics |
| PoE Class | 3 |
| Vandal rating | IK08 |
| IP rating | IP66 |
| Operating temperature | -30 to 50 °C |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the AXIS M3138-LVE?
- 8 MP (4K) resolution with a wide 126° field of view
- Forensic WDR, Lightfinder 2.0 and OptimizedIR for any lighting
- Acoustic sensor with AXIS Audio Analytics detects screams, shouts, glass break, speech and coughing fits
- AXIS Object Analytics preinstalled, including tailgating detection
- Axis Edge Vault with FIPS 140-3 Level 3 certified secure key storage
- Direct installation view over Bluetooth with the AXIS Installer app (selected markets)
- Gigabit PoE connection, IP66, NEMA 4X and IK08 rated
- Repaintable white casing
Clear Video Even in Pitch Darkness
Built-in OptimizedIR lights scenes in complete darkness up to 20 m (66 ft) or more depending on the scene, with no extra lighting needed. Lightfinder 2.0 delivers color with minimal motion blur in near darkness, and Forensic WDR keeps detail in scenes with both bright and dark areas, even with motion.
Hear What Cameras Miss
An integrated acoustic sensor runs AXIS Audio Analytics to detect key sounds such as screams, shouts, glass break, speech and coughing fits, as well as changes in sound pressure level. Detections can trigger automated responses on other devices, making the M3138-LVE a strong fit for hallways and entrances where a sound is often the first sign of trouble.
AI Analytics on the Edge
AXIS Object Analytics comes preinstalled to detect, classify, track and count humans and vehicles, with scenarios including line crossing, object in area, time in area, occupancy, crossline counting and tailgating detection. AXIS Image Health Analytics and AXIS Scene Metadata are also included.
Faster, Simpler Installation
Direct installation view lets installers see and adjust the camera view in the AXIS Installer app on a phone or tablet over Bluetooth, without accessing the network (available in selected markets). The flat-faced design suppresses light reflections and mounts on walls or ceilings.
Built-In Cybersecurity
Axis Edge Vault safeguards the device with a secure element certified to FIPS 140-3 Level 3, plus signed OS, secure boot, signed video, an encrypted filesystem and a host-based firewall.
Typical Applications
- School entrances, hallways and stairwells
- Parking areas and drop-off loops
- Retail entrances and back-of-house doors
- Healthcare corridors and waiting areas
Compatible Accessories
Compatible accessories for the AXIS M3138-LVE, available at Affinitech Store:
- AXIS T94B01P Conduit Back Box
- AXIS T8415 Wireless Installation Tool
- AXIS D6210 Air Quality Sensor
- AXIS Surveillance Card 256 GB (microSDXC)
Compare AXIS M31 Turret Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| AXIS M3125-LVE | 1920x1080 | 2 MP outdoor AI turret with IR | Entrances, walkways, storefronts |
| AXIS M3126-LVE | 2688x1512 | 4 MP wide-angle outdoor AI turret with IR | Parking lots, wide entrances, courtyards |
| AXIS M3128-LVE | 3840x2160 | 8 MP (4K) outdoor AI turret with IR | Parking lots, loading docks, perimeters |
| AXIS M3138-LVE (this camera) | 3840x2160 | 8 MP (4K) AI turret with IR and audio analytics | School entrances, hallways, parking areas |
Explore More
- Browse the full Turret Cameras collection at Affinitech Store
- See more AI-Powered Cameras at Affinitech Store
- Shop Outdoor Cameras at Affinitech Store
- Compare with the AXIS M3128-LVE
- Compare with the AXIS M3126-LVE
Frequently Asked Questions About AXIS M3138-LVE
What resolution does the AXIS M3138-LVE capture?
Up to 3840x2160 (8 MP) at 12.5/15 fps, or up to 25/30 fps in 4 MP mode.
Can it be installed outdoors?
Yes. It is IP66, NEMA 4X and IK08 rated and operates from -30 °C to 50 °C (-22 °F to 122 °F).
Does it see in the dark?
Yes. Built-in OptimizedIR with 850 nm LEDs covers 20 m (66 ft) or more depending on the scene.
What is the field of view?
126° horizontal and 67° vertical from its 3.7 mm lens.
What sounds can it detect?
With its acoustic sensor and AXIS Audio Analytics it can detect screams, shouts, glass break, speech and coughing fits, plus changes in sound pressure level.
Can it stream or record audio?
No. The acoustic sensor is used for audio analytics; the camera has no audio streaming support.
Which analytics are included?
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata and AXIS Video Motion Detection.
How does direct installation view work?
Installers see and adjust the camera view in the AXIS Installer app over Bluetooth without network access. It is available in selected markets.
How is it powered?
Power over Ethernet, IEEE 802.3af/802.3at Type 1 Class 3, max 12.95 W.
What network connection does it use?
A shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE port.
Does it support local storage?
Yes, via a microSD/microSDHC/microSDXC card slot with optional encryption, plus recording to NAS.
What cybersecurity protections are built in?
Axis Edge Vault with a FIPS 140-3 Level 3 secure element, signed OS, secure boot, signed video, encrypted filesystem and a host-based firewall.
Can the casing be painted?
Yes. It ships in white and is designed to be repainted to match its surroundings.
What warranty does it carry?
A 5-year Axis warranty.
Detailed Specifications
AXIS M3138-LVE Turret Camera Specifications
| Specification | Details |
|---|---|
| Camera | |
| Image sensor | 1/1.8" progressive scan RGB CMOS, pixel size 2.0 µm |
| Lens | 3.7 mm, F2.0, fixed iris, IR corrected |
| Horizontal field of view | 126° |
| Vertical field of view | 67° |
| Minimum focus distance | 0.5 m (1.6 ft) |
| Day and night | Automatic IR-cut filter, hybrid IR filter |
| Minimum illumination | Color: 0.18 lux at 50 IRE, F2.0 · B/W: 0.04 lux at 50 IRE, F2.0 · 0 lux with IR on |
| Shutter speed | 1/112000 s to 1/2 s |
| Camera angle adjustment | Pan ±180°, tilt 0 to +60°, rotation ±95° |
| System on Chip (SoC) | |
| Model | CV75 |
| Memory | 2 GB RAM, 8 GB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (Main, High), H.265 (Main), Motion JPEG |
| Resolution | 16:9: 3840x2160 to 640x360 · 4:3: 1440x1080 to 320x240 |
| Frame rate | Up to 12.5/15 fps in 8 MP mode; up to 25/30 fps in 4 MP mode |
| Video streaming | Multiple, individually configurable H.264/H.265/Motion JPEG streams; Axis Zipstream |
| WDR | Forensic WDR, up to 120 dB depending on scene |
| Multi-view streaming | Up to 2 individually cropped view areas |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, compression, mirroring, text and image overlay, dynamic overlay, overlay widget, privacy masks |
| Rotation | 0°, 90°, 180°, 270°, including Corridor Format |
| Scene profiles | Forensic, vivid |
| Image processing | Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR |
| Pan/Tilt/Zoom | Digital PTZ, preset position tour |
| Audio | |
| Acoustic sensor | Integrated |
| AXIS Audio Analytics | Sound pressure level, adaptive audio detection, audio classification (scream, shout, glass break, speech, coughing fit) |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
| Wireless | Bluetooth 5.4 Low Energy (direct installation view) |
| Cybersecurity | |
| Edge security | Signed OS, brute force delay protection, digest authentication, OAuth 2.0 / OpenID, password protection, Axis Cryptographic Module (FIPS 140-2 Level 1) |
| Hardware security | Axis Edge Vault: secure element (CC EAL 6+, FIPS 140-3 Level 3), system-on-chip security (TEE), Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit) |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 certificate PKI, host-based firewall |
| System Integration | |
| API | Open API including VAPIX® and AXIS Camera Application Platform (ACAP); ONVIF® Profile G, M, S and T |
| Event conditions | Audio analytics, device status, edge storage, I/O, MQTT, scheduled/recurring, video (bitrate degradation, day-night mode, tampering) |
| Event actions | Day-night mode, illumination, status LED, MQTT, notification (HTTP, HTTPS, TCP, email), overlay text, recordings, SNMP traps, upload of images/video clips |
| Video management software | AXIS Camera Station Edge, AXIS Camera Station Pro, and VMS from Axis partners |
| Analytics | |
| Applications included | AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Video Motion Detection |
| AXIS Object Analytics | Humans and vehicles · Line crossing, object in area, time in area, crossline counting, occupancy, tailgating detection, PPE monitoring (beta), motion scenarios · Up to 10 scenarios · Polygon include/exclude areas |
| Applications supported | AXIS Camera Application Platform (ACAP) third-party applications |
| General | |
| Casing | IP66-, NEMA 4X- and IK08-rated; polycarbonate hard-coated dome; plastic casing |
| Color | White NCS S 1002-B, designed for repaint |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 3; typical 3.57 W (heater and IR off), max 12.95 W; dynamic power mode, low power mode, power meter |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs; range of reach 20 m (66 ft) or more depending on the scene |
| Storage | microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption; recording to network-attached storage (NAS) |
| Operating conditions | -30 °C to 50 °C (-22 °F to 122 °F), intermittent max 65 °C (140 °F); humidity 10–100% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F); humidity 5–95% RH (non-condensing) |
| Approvals – Markings | UL/cUL, CE, KC, VCCI, RCM, BSMI, NCC, ICES, FCC, TELEC |
| Approvals – EMC | CISPR 35, CISPR 32 Class B, EN 55035, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 |
| Approvals – Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62471 risk group exempt, EN 62311 |
| Approvals – Environment | IEC 60068-2-1/-2/-6/-14/-27/-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X |
| Approvals – Cybersecurity | EN 18031-1, ETSI EN 303 645, BSI IT Security Label, FIPS 140 |
| DORI (detect / observe / recognize / identify) | 70 m / 28 m / 14 m / 7 m |
| Weight | 362 g (0.8 lb) |
| Box content | Camera, installation guide, connector guard, cable gaskets, owner authentication key |
| Optional accessories | AXIS D6210 Air Quality Sensor, AXIS T8415 Wireless Installation Tool, AXIS TM3218 Recessed Mount, AXIS TM3401 Grid Ceiling Mount, AXIS T94B01P Conduit Back Box, AXIS Surveillance Cards |
| Software support | New feature development until 2030 (AXIS OS 12, 13 and 14); support until 2035-12-31 (AXIS OS LTS) |
| Warranty | 5-year warranty |
